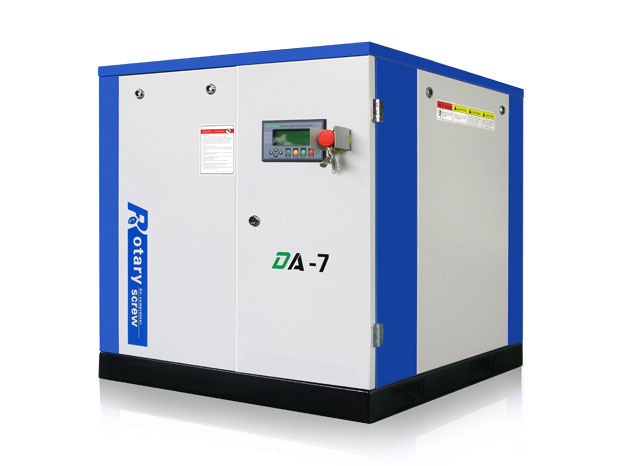

Belt Driven Air Compressor

Working Pressure :
7.5-13[ bar ]
109-189[ psig ]
Free Air Delivery :
0.45-13.95[ m³/min ]
15.9-492.6[ cfm ]
Working Power :
5.5-75[ kw ]
7.5-100[ hp ]

Chat with us, we are online!

Product Details
Technical Parameters
Catalogue Download

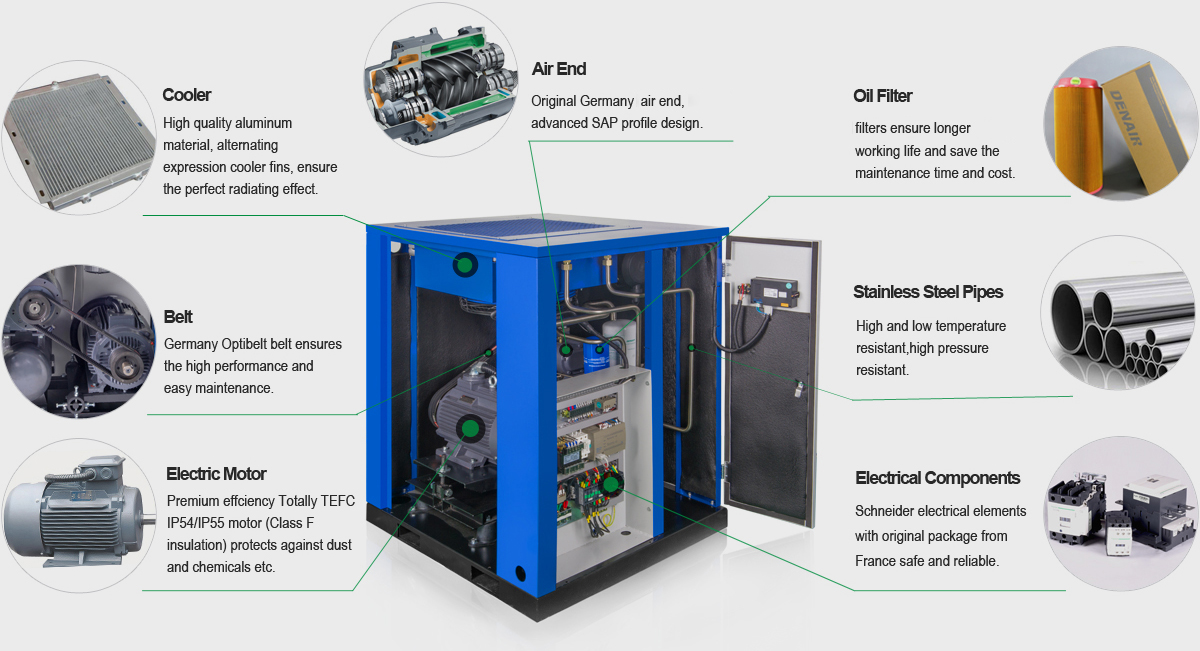

Belt Driven Air Compressor Advantages:

State-of-the-art screw element, original Germany Hanthing air end, advanced SAP profile design, superior Sweden SKF element bearings.
Adopts world-renowned components, such as Schneider electronics from France, Danfoss pressure sensor from Denmark, etc. contribute to guarantee the compressor longer service life.

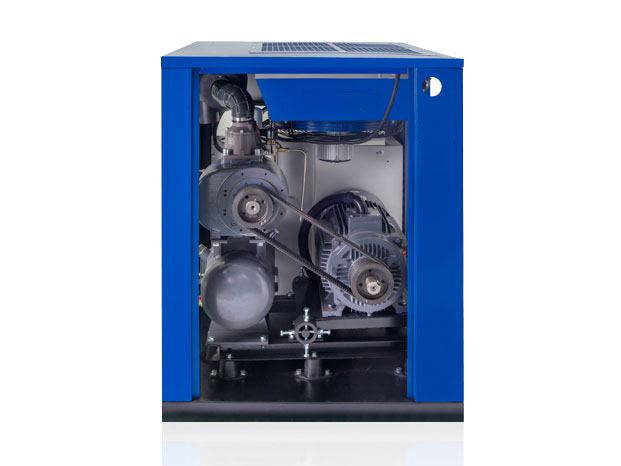

Diameter of pulley for air end and electric motor is the same, 1:1 transmission ratio, lower energy, higher efficiency.

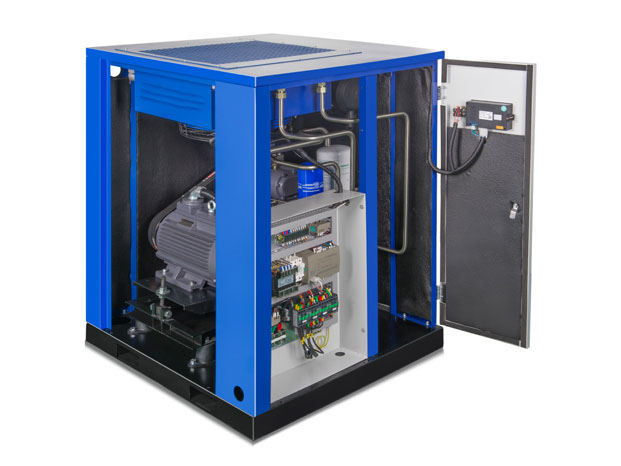

Intelligent controller and multi-language LCD keep the outstanding safety performance.
Stainless steel oil pipe and air pipe, high temperature resistant (400℃=752℉) and low temperature resistant(-270℃=518℉), high pressure resistant. Ultra-long life(80 years), completely leak free and maintenance free.
Conform to CE, ISO9001 and energy saving certification, etc.

Model	Maxinmum working pressure		Capacity(FAD)		Installed motor power		Driving mode& Cooling method	Dimensions(mm)			Weight(kg)	Noise level	Air outlet pipe diameter	EEI
Model	bar(e)	psig	m3/min	cfm	kw	hp	Driving mode& Cooling method	L	W	H	kg	dB(A)	Air outlet pipe diameter	EEI
DA-5	7.5	109	0.86	30.4	5.5	7.5	Belt Driven Air Cooling	800	800	900	300	62	G3/4	EEI2
	8.5	123	0.79	27.9	5.5	7.5		800	800	900	300	62	G3/4
	10.5	152	0.65	23	5.5	7.5		800	800	900	300	62	G3/4
	13.0	189	0.45	15.9	5.5	7.5		800	800	900	300	62	G3/4
DA-7	7.5	109	1.19	42	7.5	10		800	800	900	350	62	G3/4
	8.5	123	1.08	38.1	7.5	10		800	800	900	350	62	G3/4
	10.5	152	0.95	33.5	7.5	10		800	800	900	350	62	G3/4
	13	189	0.7	24.7	7.5	10		800	800	900	350	62	G3/4

*) Specifications are subject to change without prior notice
