Energy-saving Screw Air Compressor

Working Pressure :
7.5-13[ bar ]
109-189[ psig ]
Free Air Delivery :
9.66-74.2[ m³/min ]
341-2620[ cfm ]
Working Power :
55-355[ kw ]
75-475[ hp ]

Chat with us, we are online!

Product Details
Technical Parameters
Catalogue Download

Energy-saving air compressor Advantages:

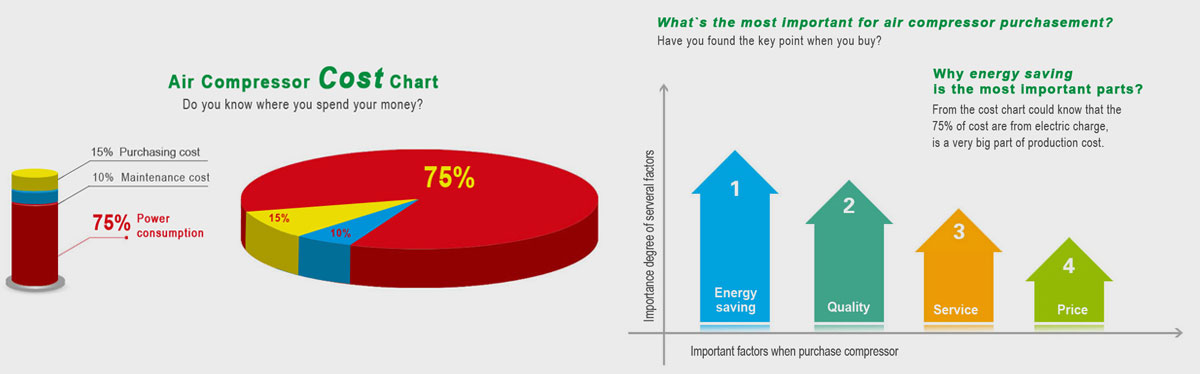

Energy-saving is the most important

Hanthing Enhanced energy saving screw air compressor reached the super energy saving level.
Energy Efficiency Index 1(EEI 1) approved according to GB19153-2009, the energy consumption is 10%~15% lower than EEI 2.
Design with 42 types of technology patent, real bigger air flow.

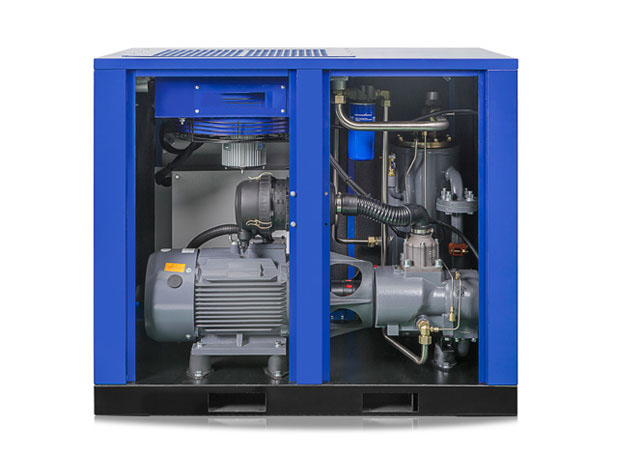

State-of-the-art screw element, original Germany Hanthing air end, advanced SAP profile design, superior Sweden SKF element bearings.
Adopts world-renowned components, such as Schneider electronics from France, Danfoss pressure sensor from Denmark, etc. contribute to guarantee the compressor longer service life.
Smart touch screen design and 0 pressure drop design.
Higher efficiency cooling system and electrical motor.
Stainless steel pipes, reasonable inner design, ensure long service life without maintenance.

Model	Maxinmum working pressure		Capacity(FAD)*				Installed motor power		driving mode& Cooling method	Dimensions(mm)			Weight	Noise level**	Air outlet pipe diameter
	Maxinmum working pressure		50 HZ		60 HZ		Installed motor power			Dimensions(mm)			Weight	Noise level**
	bar(e)	psig	m³/min	cfm	m³/min	cfm	kw	hp		L	W	H	kg	dB(A)
DA-55+	7.5	109	11.33	400	11.54	407	55	75	Direct Driven Air Cooling	2200	1400	1600	1600	69	G2"
	8.5	123	11.12	393	11.23	396	55	75
	10.5	152	9.79	346	9.70	343	55	75
	13	189	9.70	343	9.66	341	55	75
DA-75+	7.5	109	14.63	516	14.73	520	75	100		2200	1400	1600	1700	69	G2"
	8.5	123	14.52	513	14.57	515	75	100
	10.5	152	11.23	396	11.43	404	75	100
	13	189	9.70	343	9.73	344	75	100
DA-90+	7.5	109	19.80	699	19.79	699	90	120		2950	1800	2300	2500	72	DN80
	8.5	123	19.78	698	19.78	698	90	120
	10.5	152	16.48	582	18.54	655	90	120
	13	189	13.60	480	16.32	576	90	120
DA-110+	7.5	109	22.66	800	22.87	807	110	150		2950	1800	2300	3500	75	DN80
	8.5	123	22.56	796	22.56	796	110	150
	10.5	152	18.85	666	19.78	698	110	150
	13	189	18.54	655	16.32	576	110	150
DA-132+	7.5	109	27.60	975	27.19	960	132	175		2950	1800	2300	3950	75	DN80
	8.5	123	26.99	953	27.04	955	132	175
	10.5	152	22.45	793	22.62	799	132	175
	13	189	18.85	666	22.25	786	132	175
DA-160+	7.5	109	32.53	1149	32.36	1143	160	215		3700	2300	2450	5000	75	DN80
	8.5	123	32.49	1147	32.34	1142	160	215
	10.5	152	27.58	974	27.19	960	160	215
	13	189	22.40	791	22.22	784	160	215
DA-185(W)+	7.5	109	42.55	1502	40.27	1422	185	250	Direct Driven Air Cooling W-Water Cooling	3700	2300	2450	5500	75	DN100
	8.5	123	42.53	1502	40.18	1419	185	250
	10.5	152	33.14	1170	33.10	1169	185	250
	13	189	27.31	964	27.19	960	185	250
DA-200(W)+	7.5	109	44.61	1575	42.44	1498	200	270		3700	2300	2450	6500	78	DN100
	8.5	123	44.59	1574	42.33	1495	200	270
	10.5	152	33.14	1170	33.10	1169	200	270
	13	189	27.31	964	27.19	960	200	270
DA-220(W)+	7.5	109	46.89	1656	51.06	1803	220	300		3700	2300	2450	6700	78	DN100
	8.5	123	46.83	1654	50.96	1799	220	300
	10.5	152	38.24	1350	39.76	1404	220	300
	13	189	32.81	1158	32.77	1157	220	300
DA-250(W)+	7.5	109	56.24	1986	56.26	1986	250	350		3700	2300	2450	6800	78	DN100
	8.5	123	56.22	1985	56.01	1978	250	350
	10.5	152	41.60	1469	45.89	1620	250	350
	13	189	37.85	1337	39.37	1390	250	350
DA-280(W)+	7.5	109	58.40	2062	60.39	2133	280	375		4300	2400	2350	7500	78	DN125
	8.5	123	58.09	2051	60.36	2131	280	375
	10.5	152	46.75	1651	49.92	1763	280	375
	13	189	41.19	1454	45.42	1604	280	375
DA-315(W)+	7.5	109	62.70	2214	66.57	2351	315	425		4300	2400	2350	7800	80	DN125
	8.5	123	62.62	2211	66.57	2351	315	425
	10.5	152	54.92	1939	56.10	1981	315	425
	13	189	41.60	1469	49.43	1745	315	425
DA-355(W)+	7.5	109	72.70	2567	74.20	2620	355	475		4300	2400	2350	8500	80	DN125
	8.5	123	72.62	2564	74.05	2615	355	475
	10.5	152	62.08	2192	65.90	2327	355	475
	13	189	46.75	1651	49.92	1763	355	475

*) FAD in accordance with ISO 1217 : 2009, Annex C: Absolute intake pressure 1 bar (a), cooling and air intake temperature 20 °C
**) Noise level as per ISO 2151 and the basic standard ISO 9614-2, operation at maximum operating pressure and maximum speed; tolerance: ± 3 dB(A)
***) EEI 1- Energy Effiency Index 1, which refers to enhanced energy saving series
