All New Portable Breathing Air Compressor

Capacity :
80-100[ L/min ]
2.8-3.5[ cfm ]
Power :
2.2-4.2[ Kw ]

Chat with us, we are online!

Product Details
Technical Parameters
Catalogue Download

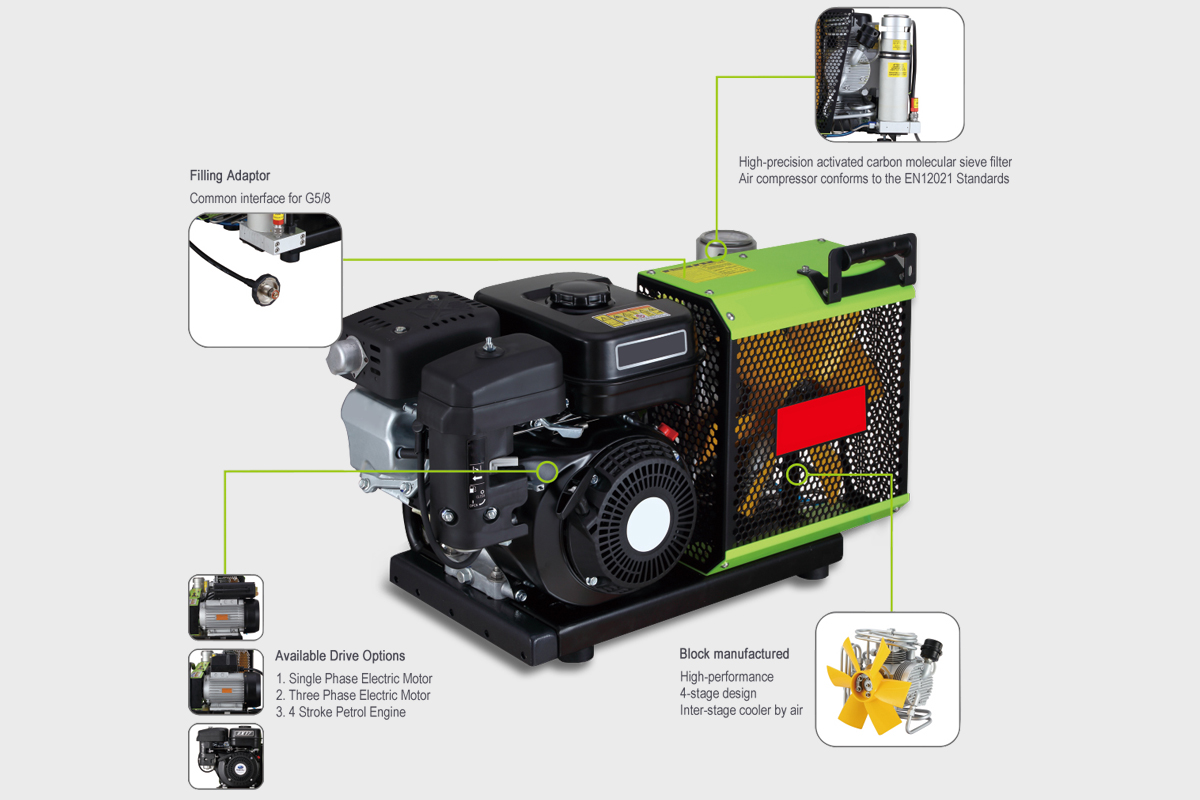

All New Portable Breathing Air Compressor:

CMC 100/SH/ET/EM Standard Series is newest design, they are cost-effective, reliable and portable. Being small all light-weight, it can be fitted into the boot of the car. Perfect for those in the fire-fighting, chemical and diving industry.

It is applicable for use in a range of industries including: Recreational Diving, Defence, Shipbuilding and Medical Engineering.

GMC100/SH/ET/EM STD

Capacity:100L/min
Working Pressure:
Positive pressure air breather
Filling pressure: 300bar
SCUBA(Aqualung)
Filling pressure: 225bar
Drive Option:
SUBARU Petrol Engine
Single Phase Electric Motor
Three Phase Electric Motor

Specifications:

With power line and magnetic starting switch
Oil-water separator and filter using aluminum alloy integrated design
Final stage safety valve offer overload protection
Button or switch with start and stop
Metal frame with spray coating
Aluminum and Stainless steel inter-stage condenser pipe
Mini inlet silencer filter
Active carbon molecular sieve filter
Condensate drain valve

Standard Configuration

Type Number	Booking Number	Quantity
High Pressure hose12*1200	G03C-BZ2D-0006	1PC
Filling adaptor	G05B-VL31-A300	1PC
LUXON dedicated lubricating oil	G02A-E18I-0084	0.4L
Activated carbon filter cartridge-HL10	G10B-HL10-F000	1PC
Intake filter-60*40	G10B-KL10-0100	1PC

Available Options

Type Number	Booking Number	Quantity
Transform adatptor	G03C-BZ2D-0007	1PC
DIN/INT Adaptor	G30G-0000-0000	1PC
Filling valve	G09B-B101-FF10	1PC
Filling valve with gauge	G02C-E181-0012	1PC
βcontrol system
Filter cartridge monitoring system
Stationless steel frame
Autostop
Autodrain

Data
Drive	Single Phase Electric Motor	Three Phase Electric Motor	GASOLINE	Remark
Stage	4
Fuel Quantity L	0.35
Noise Level dB	80
Breathing air standard	EN12021
Working Pressure Bar	225/300
Filling time Min	2			Time to fill 1L cylinder 0-100bar(0-3000 psi)

Type	Booking Number	Capacity		Power	Drive Options	Rotation Speed	Weight	Volume
Type	Booking Number	L/MIN	CFM	KW	Drive Options	RPM	KG/LBS	LWH
GMC100/ET	G02B-B06I-PF30	100	3.5	3.0	400-440V 50HZ Three Phase Electric Motor	2800	40/88.3	516378432
	G02B-B06I-PG30	100	3.5	3.0	400-440V 60HZ Three Phase Electric Motor	2800	40/88.3	516378432
	G02B-B06I-P730	100	3.5	3.0	380-440V 50HZ Three Phase Electric Motor	2800	40/88.3	516378432
	G02B-B06I-P830	100	3.5	3.0	380-440V 60HZ Three Phase Electric Motor	2800	40/88.3	516378432
	G02B-B06I-PH30	100	3.5	3.0	220-230V 50HZ Three Phase Electric Motor	2800	40/88.3	516378432
	G02B-B06I-P930	100	3.5	3.0	220-230V 6 0HZ Three Phase Electric Motor	2800	40/88.3	516378432
GMC100/EM	G02B-B05I-P130	80	2.8	2.2	220V 50HZ Single Phase Electric Motor	2240	42/93	516378432
GMC100/EM	G02B-B05I-P230	80	2.8	2.2	220V 60HZ Single Phase Electric Motor	2240	42/93	516378432
GMC100/SH	G02B-B06I-PD30	100	3.5	4.2		2800	38/84	684356432
