High Pressure Screw Air Compressor

Working Pressure :
16-40[ bar ]
233-580[ psig ]
Free Air Delivery :
10.00-32.39[ m³/min ]
353-1144[ cfm ]
Working Power :
110-280[ kw ]
150-375[ hp ]

Chat with us, we are online!

Product Details
Technical Parameters
Catalogue Download

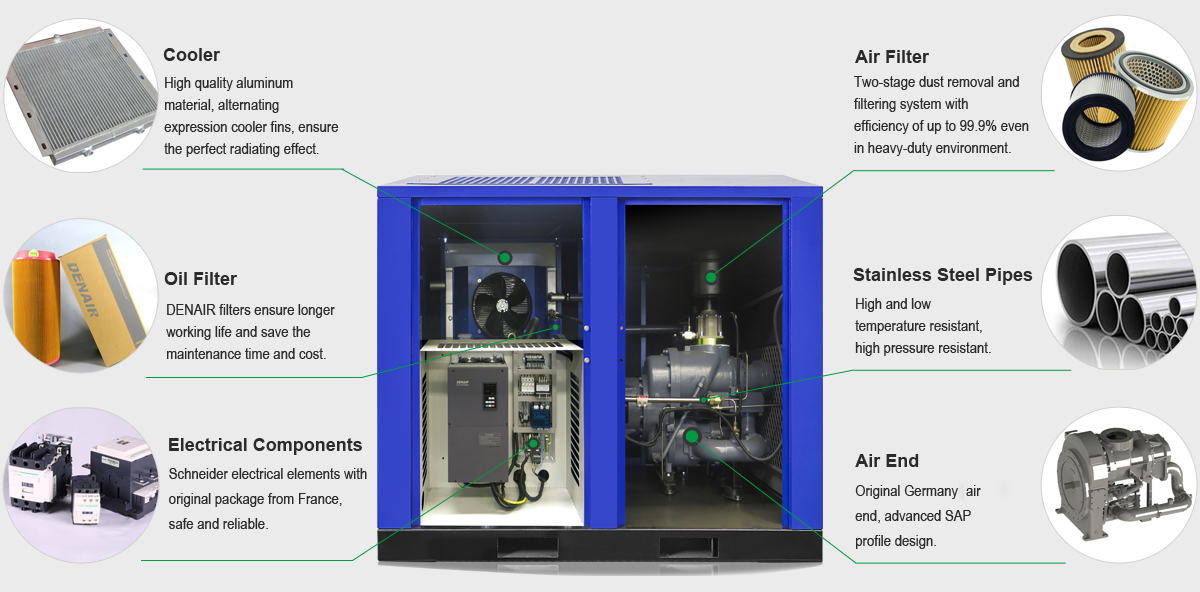

High Pressure Screw Air Compressor Advantages:

Superior design with 42 types of technology patent, two stages compression, realize maximum energy saving and lowest noise level.
State-of-the-art screw element, original Germany Hanthing air end, advanced SAP profile design, superior Sweden SKF element bearings.
Adopts world-renowned components, such as Schneider electronics from France, Danfoss pressure sensor from Denmark, etc. contribute to guarantee the compressor longer service life.
Stainless steel oil pipe and air pipe, high temperature resistant (400℃=752℉) and low temperature resistant(-270℃=518℉), high pressure resistant. Ultra-long life(80 years), completely leak free and maintenance free.
Conform to CE, ISO9001 and energy saving certification, etc.

Model	Maxinmum working pressure		Capacity(FAD)*				Installed motor power		driving mode& Cooling method	Dimensions(mm)			Weight	Noise level**	Air outlet pipe diameter
	Maxinmum working pressure		50 HZ		60 HZ		Installed motor power			Dimensions(mm)			Weight	Noise level**
	bar(e)	psig	m³/min	cfm	m³/min	cfm	kw	hp		L	W	H	kg	dB(A)
DAH-110-16	16	233	11.40	403	11.40	403	110	150	Direct Driven Air Cooling /W-Water Cooling	2800	1950	2000	2500	78	DN80
DAH-110-18	18	261	10.95	387	10.95	387	110	150		2800	1950	2000	2500	78	DN80
DAH-110-20	20	290	10.56	373	10.56	373	110	150		2800	1950	2000	3500	78	DN80
DAH-110-25	25	363	10.40	367	10.40	367	110	150		2800	1950	2000	3500	78	DN80
DAH-110-30	30	135	10.20	360	10.20	360	110	150		2800	1950	2000	4150	78	DN50
DAH-110-35	35	508	10.10	357	10.10	357	110	150		2800	1950	2000	4150	78	DN50
DAH-110-40	40	580	10.00	353	10.00	353	110	150		2800	1950	2000	4150	78	DN50
DAH-132-16	16	233	14.22	502	14.22	502	132	175		2800	1950	2000	2600	78	DN80
DAH-132-18	18	261	14.07	497	14.07	497	132	175		2800	1950	2000	2600	78	DN80
DAH-132-20	20	290	13.65	482	13.65	482	132	175		2800	1950	2000	3600	78	DN80
DAH-132-25	25	363	12.74	450	12.74	450	132	175		2800	1950	2000	3600	78	DN80
DAH-132-30	30	435	10.42	368	10.42	368	132	175		2800	1950	2000	4250	78	DN50
DAH-132-35	35	508	10.30	364	10.30	364	132	175		2800	1950	2000	4250	78	DN50
DAH-132-40	40	580	10.16	359	10.16	359	132	175		2800	1950	2000	4250	78	DN50
DAH-160-16	16	233	18.41	650	18.41	650	160	215		2800	1950	2000	3150	80	DN80
DAH-160-18	18	261	18.25	644	18.25	644	160	215		2800	1950	2000	3800	80	DN80
DAH-160-20	20	290	15.82	559	15.82	559	160	215		2800	1950	2000	3800	80	DN80
DAH-160-25	25	363	15.13	534	15.13	534	160	215		2800	1950	2000	3800	80	DN80
DAH-185(W)-16	16	233	18.41	650	18.41	650	185	250		2800	1950	2000	3550	80	DN80
DAH-185(W)-18	18	261	18.25	644	18.25	644	185	250		2800	1950	2000	3550	80	DN80
DAH-185(W)-20	20	290	15.82	559	15.82	559	185	250		2800	1950	2000	4000	80	DN80
DAH-185(W)-25	25	363	15.13	534	15.13	534	185	250		2800	1950	2000	4000	80	DN80
DAH-200(W)-16	16	233	18.41	650	18.41	650	200	275		3700	2300	2450	4150	80	DN80
DAH-200(W)-18	18	261	18.25	644	18.25	644	200	275		3700	2300	2450	4600	80	DN80
DAH-200(W)-20	20	290	15.82	559	15.82	559	200	275		3700	2300	2450	4600	80	DN80
DAH-200(W)-25	25	363	15.13	534	15.13	534	200	275		3700	2300	2450	4600	80	DN80
DAH-220(W)-16	16	233	18.41	650	18.41	650	220	300		3700	2300	2450	4150	80	DN80
DAH-220(W)-18	18	261	18.25	644	18.25	644	220	300		3700	2300	2450	4600	80	DN80
DAH-220(W)-20	20	290	15.82	559	15.82	559	220	300		3700	2300	2450	4600	80	DN80
DAH-220(W)-25	25	363	15.13	534	15.13	534	220	300		3700	2300	2450	4600	80	DN80
DAH-250(W)-16	16	233	18.41	650	18.41	650	250	350		3700	2300	2450	4400	82	DN80
DAH-250(W)-18	18	261	18.25	644	18.25	644	250	350		3700	2300	2450	5200	82	DN80
DAH-250(W)-20	20	290	15.82	559	15.82	559	250	350		3700	2300	2450	5200	82	DN80
DAH-250(W)-25	25	363	15.13	534	15.13	534	250	350		3700	2300	2450	5200	82	DN80
DAH-280(W)-16	16	233	18.41	650	18.41	650	280	375		3700	2300	2450	4700	82	DN80
DAH-280(W)-18	18	261	18.25	644	18.25	644	280	375		3700	2300	2450	5500	82	DN80
DAH-280(W)-20	20	290	15.82	559	15.82	559	280	375		3700	2300	2450	5500	82	DN80
DAH-280(W)-25	25	363	15.13	534	15.13	534	280	375		3700	2300	2450	5500	82	DN80

*) FAD in accordance with ISO 1217 : 2009, Annex C: Absolute intake pressure 1 bar (a), cooling and air intake temperature 20 °C
**) Noise level as per ISO 2151 and the basic standard ISO 9614-2, operation at maximum operating pressure and maximum speed; tolerance: ± 3 dB(A)
***) Specifications are subject to change without prior notice
