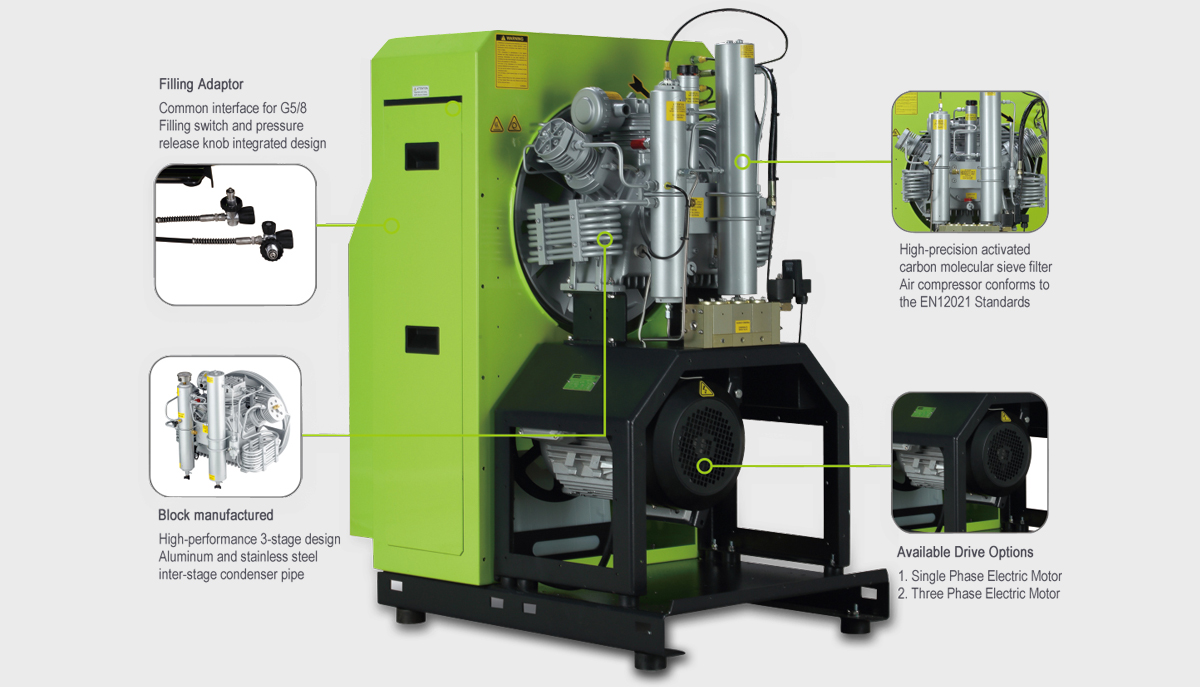

Automatic Control Gas-filling Station:

Gas-filling station GMC 215/265/300/ET K is designed for those that have large charging requirements such as the fire fighting unit. This series possess perfect protection for the operator. It also has automatic functions that will further convenience the user. Its silent design effectively blocks out noise and can be installed indoor. It is applicable for use in a range of industries including: Fire fighting industry, Chemical industry, Mining, Diving Service station and other industries with demands for higher usage.

GMC215/265/300/ET K

• Capacity: 215-300L/min
• Working Pressure:
  Positive pressure air breather
  filling pressure: 300bar
  SCUBA(Aqualung)
  filling pressure: 225bar
• Drive Option:
  Single Phase Electric Motor
  Three Phase Electric Motor

Specifications:

• Vertical box design
• Highly effective 3-cylinder, 3-stage compressor
• Each stage with safety valve
• Three phase electric motor
• Pressure gauge on the panel show each cylinder's pressure
• Autodrain condensation with collection bin
• Active carbon molecular sieve triple filtration system
• Auto-unload when stop
• Interstage oil-water separator and autodrain condensation
• Autoshop when over maximum pressure
• Main power breaker/Hour meter/Temperature pressure controller on the panle
• Control panel integrated start/stop/emergency stop/manual drain test button
• Steering and oil level warning lights on panel
• Two high pressure hoses with venting function G5/8 interface filling valve
• Breathing air conforms to the EN12021 Standards
