High Flow Super Silent Gas-Filling Station:

High flow super silent gas-filling station GMC 700/800/900/ET SILENT is designed for those with higher filling requirements, such as the fire fighting unit. This series possess perfect protection for the user and also allows for automatic operations that will boost convenience for its user. With its super silent design, it can be installed indoor. It is applicable for use in a range of industries including: Fire fighting industry, Chemical industry, Mining, Diving service station and industries that have high filling rate demands.

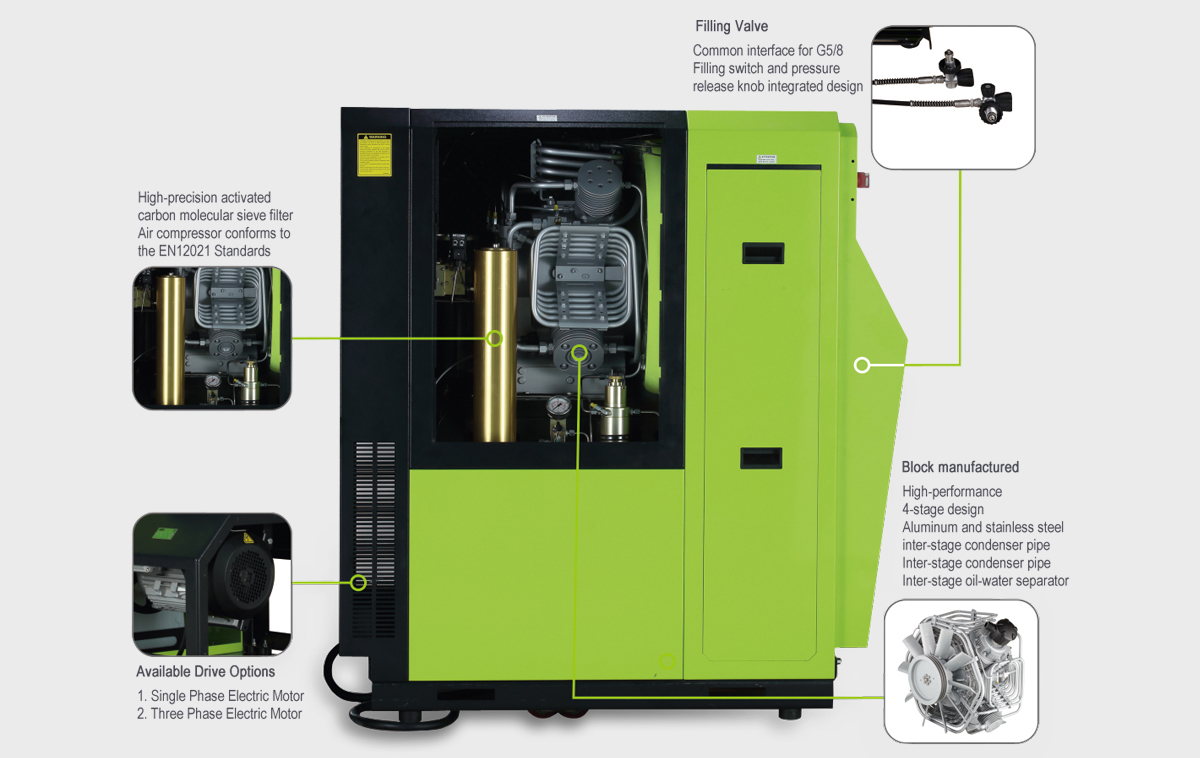

GMC 700/800/900/ET SILENT

• Capacity: 700-900L/min
• Working Pressure:
  Positive pressure air breather
  filling pressure: 300bar
  SCUBA(Aqualung)
  filling pressure: 225bar
• Drive Option:
  Single Phase Electric Motor
  Three Phase Electric Motor

Specifications:

• Vertical box design
• Highly effective X 4-cylinder, 4-stage compressor (Pressure 500bar with 5-cylinder, 5-stage compressor)
• Each stage with safety valve
• Pressure gauge on the panel show each cylinder's pressure
• Oil pump pressure lubricate with lubricating oil filter
• Oil pressure gauge on panel
• Auto-drain fondensate water with noise elimination
• Condensate collection tank
• Large capacity active carbon molecular sieve triple filtration system
• Auto-unload when stop
• Stainless steel inter-stage condenser pipe
• Inter-stage oil-water separator and auto-drain condensation
• Main power breaker/Hour meter/Temperature pressure controller on the panel
• control panel integrated start/stop/emergency stop/manual drain test button
• Steering and oil level warming lights on panel
• Compressed air conforms to the EN12021 Standards
