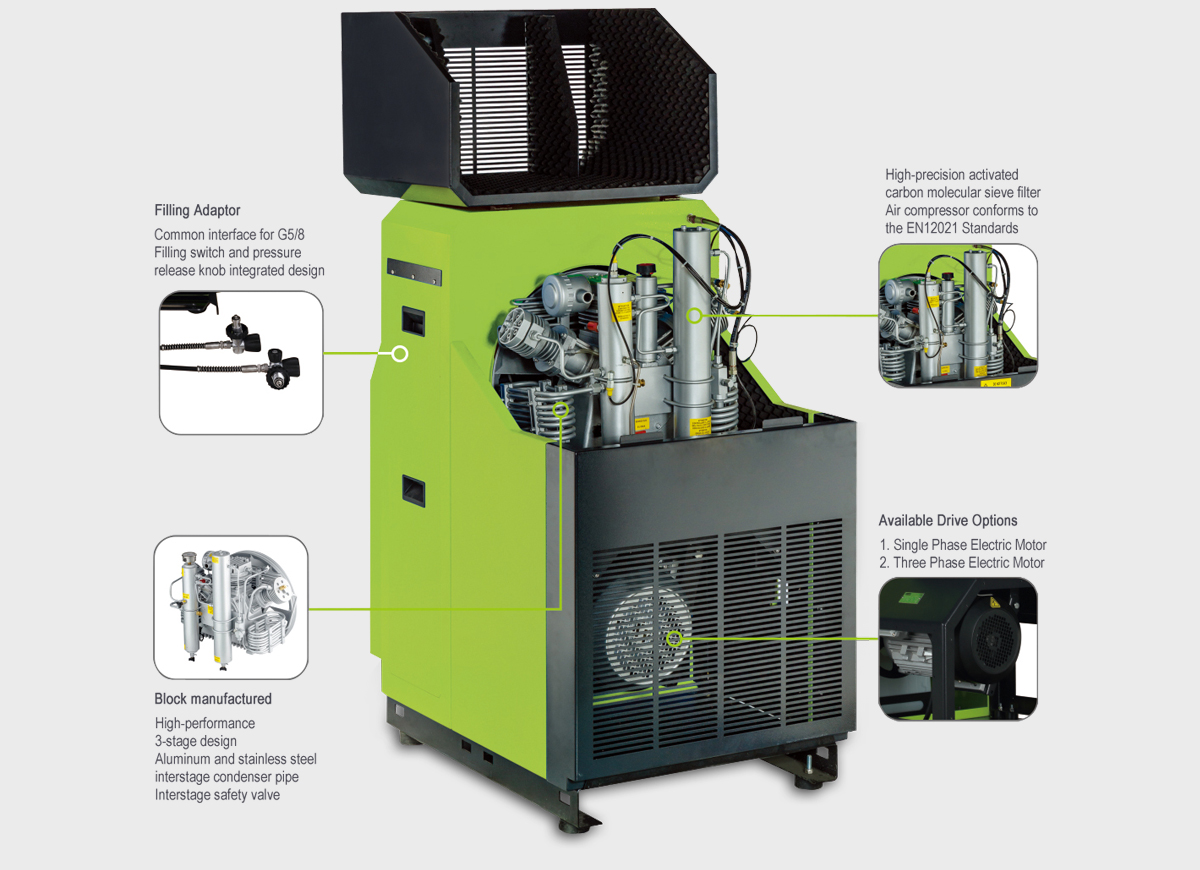

Super Silent Gas-filling Station:

Super silent gas-filling station GMC 215/265/300/ET SILENT is designed for those with higher filling requirements, such as the fire fighting unit. This series possess perfect protection for the user and also flows for automatic operations that will boost convenience for its user. With its super silent design, it can be installed indoor.

It is applicable for use in a range of industries including: Fire fighting industry, Chemical industry, Mining, Diving service station and industries that have high filling rate demands.

GMC215/265/300/ET SILENT

• Capacity: 215-300L/min
• Working Pressure:
  Positive pressure air breather
  filling pressure: 300bar
  SCUBA(Aqualung)
  filling pressure: 225bar
• Drive Option:
  Single Phase Electric Motor
  Three Phase Electric Motor

Specifications:

• Vertical box design
• Highly effective 3-cylinder, 3-stage compressor
• Each stage with safety valve
• Three phase electric motor
• Pressure gauge on the panel show each cylinder's pressure
• Auto-drain condensation with collection bin
• Active carbon molecular sieve triple filtration system
• Auto-unload when stop
• Aluminum and stainless sell inter-stage condenser pipe
• Inter-stage oil-water separator and auto-drain condensation
• Auto-shop when over maximum pressure
• Main power breaker/Hour meter/Temperature pressure controller on the panel
• Control panel integrated start/stop/emergency stop/manual drain test button
• Steering and oil level warning lights on panel
• Two high pressure hoses with venting function G5/8 interface filling valve
• Breathing air conforms to the EN12021 Standards
