Home > VSD Air Compressor > Tank Mounted PM VSD Screw Air Compressor

Tank Mounted PM VSD Screw Air Compressor

Working Pressure :
7.5-13[ bar ]
109-189[ psig ]
Free Air Delivery :
0.23-5.20[ m³/min ]
8.12-183.61[ cfm ]
Working Power :
5.5-30[ kw ]
7.5-40[ hp ]

Chat with us, we are online!

Product Details
Technical Parameters
Catalogue Download

Tank Mounted PM VSD Screw Air Compressor Details:

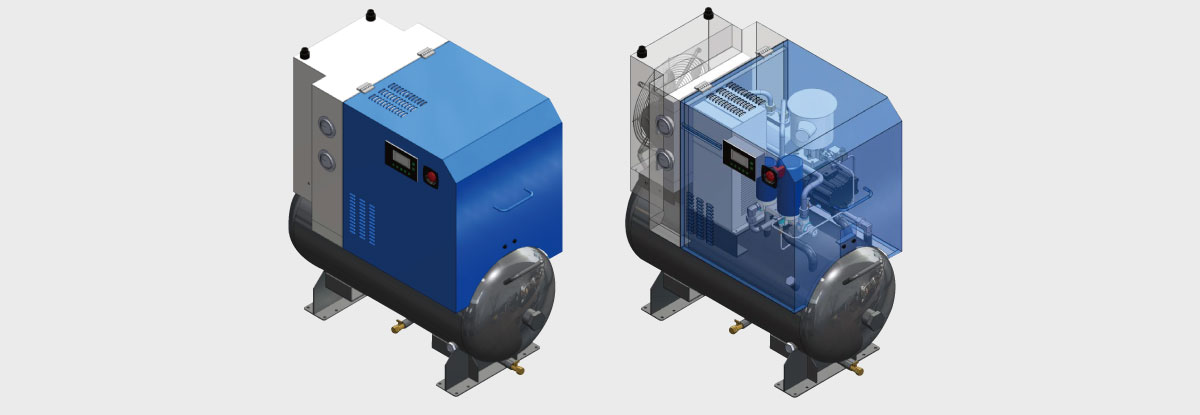

Tank Mounted Permanent Magnetic Variable Speed Drive Screw Air Compressor

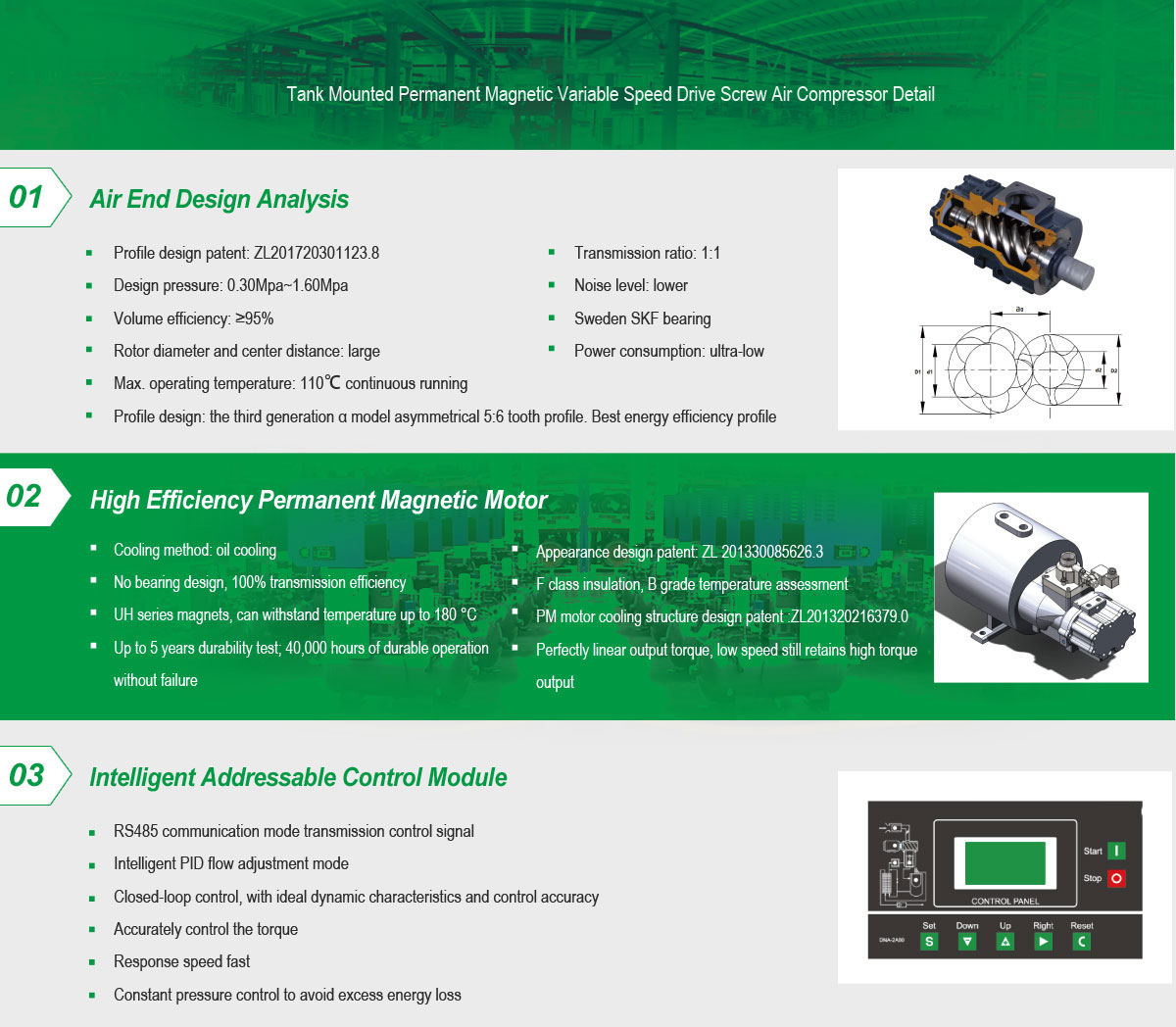

Tank Mounted Permanent Magnetic Variable Speed Drive Screw Air Compressor Details

Model	Maximum working pressure		Capacity(FAD)		installed motor power		Voltage and IP Grade	Noise level	Dimensions(mm)	Weight	Air outlet pipe diameter	Starting Method	EEI
Model	bar(e)	psig	m3/min	cfm	kw	hp	Voltage and IP Grade	Noise level	LWH	kg	Air outlet pipe diameter	Starting Method	EEI
DAV-5+	7.5	109	0.29~0.95	10.24~33.54	5.5	7.5	380V IP65	68±3	12005501130	285	RC3/4	Direct driect Single stage Permanent Magnet Variable Frequency Oil cooled With storage tank	EEI1
	8.5	123	0.27~0.90	9.53~31.78
	10.5	152	0.23~0.75	8.12~26.48
DAV-7+	7.5	109	0.38~1.26	13.42~44.49	7.5	10		68±3	12005501130	290	RC3/4
	8.5	123	0.36~1.21	12.71~42.73
	10.5	152	0.30~1.00	10.59~35.31
DAV-11+	7.5	109	0.59~1.96	20.83~69.21	11	15		70±3	12005501130	340	RC3/4
	8.5	123	0.57~1.91	20.13~67.44
	10.5	152	0.44~1.45	15.54~51.20
	13	189	0.40~1.20	14.12~42.37
DAV-15+	7.5	109	0.78~2.61	27.54~92.16	15	20		72±3	12006101250	420	RC1
	8.5	123	0.75~2.51	26.48~88.63
	10.5	152	0.62~2.05	21.89~72.39
	13	189	1.81~1.90	63.91~67.09
DAV-18+	7.5	109	0.84~2.81	29.66~99.22	18.5	25		72±3	12006101250	430	RC1
	8.5	123	0.84~2.80	29.66~98.87
	10.5	152	0.77~2.50	27.19~88.28
	13	189	0.60~2.30	21.19~81.21
DAV~22+	7.5	109	1.11~3.70	39.19~130.65	22	30		75±3	16507501420	510	RC11/4
	8.5	123	1.08~3.60	38.13~127.12
	10.5	152	1.05~3.50	37.08~123.59
	13	189	0.80~2.80	28.25~98.87
DAV~30+	7.5	109	1.56~5.20	55.08~183.61	30	40		75±3	16507501420	550	RC11/4
	8.5	123	1.53~5.10	54.02~180.08
	10.5	152	1.28~4.25	45.20~150.07
	13	189	1.05~3.35	37.08~118.29

*) Specifications are subject to change without prior notice
