Full Features Screw Air Compressor

Working Pressure :
7.5-13[ bar ]
109-189[ psig ]
Free Air Delivery :
0.47-7.73[ m^³/min ]
17-273[ cfm ]
Working Power :
5.5-37[ kw ]
7.5-50[ hp ]

Chat with us, we are online!

Product Details
Technical Parameters
Catalogue Download

Full Features Screw Air Compressor Advantages:

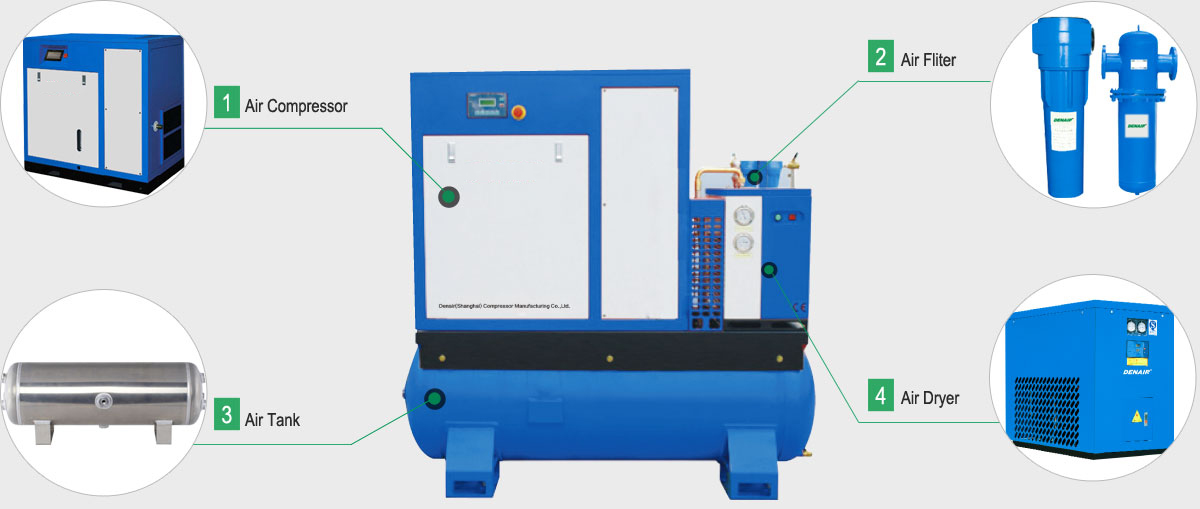

Hanthing combined screw air compressor is assembled with rotary screw air compressor, air storage tank, refrigerant-type air dryer and air filters.
The air dryer and filters efficiently remove moisture, aerosols and dirt particles to protect your equipment. This high quality air expands the life of equipment, increases efficiency and ensures quality in your final product.
Easy to install, operate and move. And space-saving.
State-of-the-art screw element, original Germany Hanthing air end, advanced SAP profile design, superior Sweden SKF element bearings.
Adopts world-renowned components, such as Schneider electronics from France, Mann filters from Germany, Danfoss pressure sensor from Denmark, etc. contribute to guarantee the compressor longer service life.
Conform to CE, ISO9001 and energy saving certification, etc.

Model	Maxinmum working pressure		Capacity(FAD)*				Installed motor power		Driving mode& Cooling method	Dimensions(mm)			Weight	Noise level**	Air outlet pipe diameter
	Maxinmum working pressure		50 HZ		60 HZ		Installed motor power			Dimensions(mm)			Weight	Noise level**
	bar(e)	psig	m³/min	cfm	m³/min	cfm	kw	hp		L	W	H	kg	dB(A)
DNA-5	7.5	109	0.85	30	0.85	30	5.5	7.5	Belt Driven Air Cooling	900	660	940	180	62	G3/4"
	8.5	123	0.84	30	0.84	30	5.5	7.5		900	660	940	180
	10.5	152	0.59	21	0.59	21	5.5	7.5		900	660	940	180
	13	189	0.47	17	0.47	17	5.5	7.5		900	660	940	180
DNA-7	7.5	109	1.04	37	1.02	36	7.5	10		900	660	940	180	62	G3/4"
	8.5	123	0.96	34	0.96	34	7.5	10		900	660	940	180
	10.5	152	0.88	31	0.88	31	7.5	10		900	660	940	180
	13	189	0.72	25	0.72	25	7.5	10		900	660	940	180
DNA-11	7.5	109	1.73	61	1.66	59	11	15		900	660	940	180	62	G3/4"
	8.5	123	1.73	61	1.58	56	11	15		900	660	940	180
	10.5	152	1.34	47	1.34	47	11	15		900	660	940	180
	13	189	1.10	39	1.10	39	11	15		900	660	940	180
DNA-15	7.5	109	2.48	88	2.34	83	15	20	Direct Driven Air Cooling	1250	870	1040	300	64	G1-1/4"
	8.5	123	2.47	87	2.34	83	15	20		1250	870	1040	300
	10.5	152	1.99	70	2.32	82	15	20		1250	870	1040	300
	13	189	1.98	70	2.30	81	15	20		1250	870	1040	300
DNA-18	7.5	109	2.95	104	3.56	126	18.5	25		1250	870	1040	375	64	G1-1/4"
	8.5	123	2.94	104	3.54	125	18.5	25		1250	870	1040	375
	10.5	152	2.90	103	2.34	83	18.5	25		1250	870	1040	375
	13	189	1.98	70	2.33	82	18.5	25		1250	870	1040	375
DNA-22	7.5	109	3.63	128	3.56	126	22	30		1250	870	1040	420	66	G1-1/4"
	8.5	123	3.61	127	3.54	125	22	30		1250	870	1040	420
	10.5	152	2.90	103	3.52	124	22	30		1250	870	1040	420
	13	189	2.88	102	2.34	83	22	30		1250	870	1040	420
DNA-30	7.5	109	5.15	182	4.33	153	30	40		1650	1050	1400	645	66	G1-1/4"
	8.5	123	5.14	181	4.31	152	30	40		1650	1050	1400	645
	10.5	152	5.11	180	3.57	126	30	40		1650	1050	1400	645
	13	189	3.37	119	3.54	125	30	40		1650	1050	1400	645
DNA-37	7.5	109	6.38	225	7.73	273	37	50		1650	1050	1400	680	66	G1-1/4"
	8.5	123	6.34	224	7.70	272	37	50		1650	1050	1400	680
	10.5	152	6.32	223	6.27	221	37	50		1650	1050	1400	680
	13	189	6.27	221	6.16	217	37	50		1650	1050	1400	680

*) FAD in accordance with ISO 1217 : 2009, Annex C: Absolute intake pressure 1 bar (a), cooling and air intake temperature 20 °C
**) Noise level as per ISO 2151 and the basic standard ISO 9614-2, operation at maximum operating pressure and maximum speed; tolerance: ± 3 dB(A)
