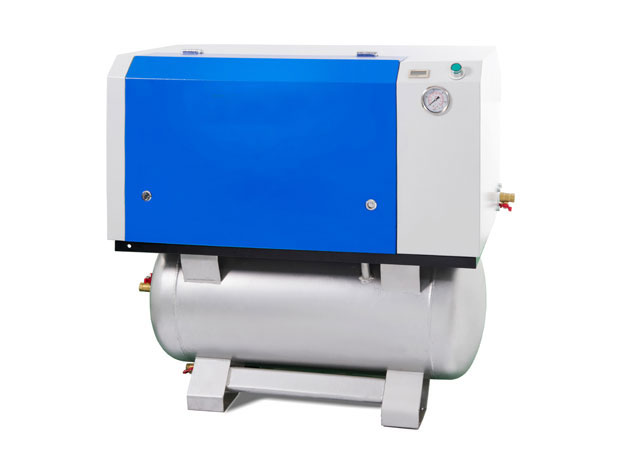

Oil-free Scroll Air Compressor

Working Pressure :
7.5-10.5[ bar ]
109-152[ psig ]
Free Air Delivery :
0.37-1.26[ m³/min ]
13-44[ cfm ]
Working Power :
3.7-11[ kw ]
5-15[ hp ]

Chat with us, we are online!

Product Details
Technical Parameters
Catalogue Download

Oil-free Scroll Air Compressor Advantages:

Clean Air 100% Oil-Free
Oil-free type compressors can supply clean air.
Low noise & Low Vibration
Silent operation and low vibration assure comfortable and quiet work space.
Safe Backup Function
Even if one air end fails, another air end automatically replaces it by jump control. Unmanned operation at night has become easy.
Easy to Control
High quality microcomputer is mounted. Digital maintenance monitor displays operating conditions, warnings and cautions. Automatic power failures and reset function can be dealt with easily.
Compact and Smart Design
There are no extruding handles on the back of machine. Its simple design and reduced installation space required allow it to fit well in any office.
Designed especially for medical, pharmacy, laboratory, instrument, coating, chemical industry and food processing, etc.

Type	Maximum working pressure		Capacity(FAD)				installed motor power		No of air end	Outlet Diameter	Noise Level**	Dimensions (mm)			Weight
	Maximum working pressure		50 Hz		60 Hz		installed motor power		No of air end	Outlet Diameter	Noise Level**	Dimensions (mm)			Weight
	bar(e)	psig	m³/min	cfm	m³/min	cfm	kW	hp	Units	inch	dB(A)	L	W	H	kg
DWW-3	7.5	109	0.42	15	0.42	15	3.7	5	1	G1/2"	52	1000	720	680	195
	8.5	123	0.40	14	0.40	14	3.7	5		G1/2"	52	1000	720	680	195
	10.5	152	0.37	13	0.37	13	3.7	5		G1/2"	52	1000	720	680	195
DWW-5	7.5	109	0.6	21	0.6	21	5.5	7.5	2	G1"	54	1000	720	990	285
	8.5	123	0.57	20	0.57	20	5.5	7.5		G1"	54	1000	720	990	285
	10.5	152	0.53	19	0.53	19	5.5	7.5		G1"	54	1000	720	990	285
DWW-7	7.5	109	0.84	30	0.84	30	7.5	10	2	G1"	56	1000	720	990	285
	8.5	123	0.80	28	0.80	28	7.5	10		G1"	56	1000	720	990	285
	10.5	152	0.73	26	0.73	26	7.5	10		G1"	56	1000	720	990	285
DWW-11	7.5	109	1.26	44	1.26	44	11	15	3	G1"	59	1000	720	1340	395
	8.5	123	1.20	42	1.20	42	11	15		G1"	59	1000	720	1340	395
	10.5	152	1.10	39	1.10	39	11	15		G1"	59	1000	720	1340	395

*) FAD in accordance with ISO 1217 : 2009, Annex C: Absolute intake pressure 1 bar (a), cooling and air intake temperature 20 °C
**) Noise level as per ISO 2151 and the basic standard ISO 9614-2, operation at maximum operating pressure and maximum speed; tolerance: ± 3 dB(A)
