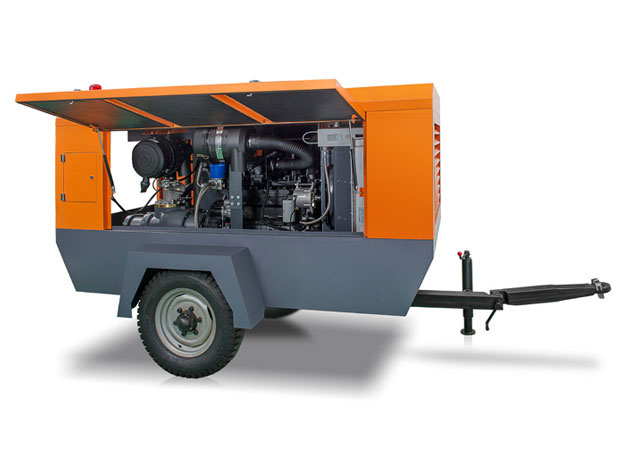

Diesel Portable Air Compressor

Diesel Portable Air Compressor

Diesel Portable Air Compressor Advantages:

  • Use Germany KAPP machine and German manufacturing technique to process the compression element, the components manufactured to the highest standards and precision aligned roller-bearings ensure long service life with maximum reliability.
  • Heavy-duty CUMMINS diesel engine for extended operation.
  • Excellent components, for example, Siemens electronics for high performance.
  • Automatic operation system helps the operator to master the operating skills quickly, unattended operation and remote control are available.
  • Conform to CE, ISO9001 and energy saving certification, etc.
  • Applications: mining, hydropower, oil and gas exploitation, borehole, shipyard, construction, chemical industry, quarry, sandblasting, pipeline pressure test, public works, etc.
Type DACY-3.2/8 DACY-5/7 DACY-6/7 DACY-5/8 DACY-6/8 DACY-5/9 DACY-6/9
Machine
Free air delivery m³/min 3.98 5.72 5.72 5.69 5.69 5.65 5.65
cfm 140 202 202 201 201 200 200
Normal working pressure bar(e) 8 7 7 8 8 9 9
psig 116 102 102 116 116 130 130
Dimensions
(without towbar)
(mm)		 L(mm) 2265 3075 3075 3075 3075 3075 3075
W(mm) 1590 1900 1900 1900 1900 1900 1900
H(mm) 1575 2040 2040 2040 2040 2040 2040
Weight kG 900 1350 1350 1350 1350 1350 1350
Wheel qty 2 2 2 2 2 2 2
Size and No. of outlet valve G1/2"*1
G1"*1		 G3/4"*1
G1-1/4"*1		 G3/4"*1
G1-1/4"*1		 G3/4"*1
G1-1/4"*1		 G3/4"*1
G1-1/4"*1		 G3/4"*1
G1-1/4"*1		 G3/4"*1
G1-1/4"*1
Diesel engine
Manufacturer Yangdong Cummins Cummins Cummins Cummins Cummins Cummins
Model YSD490G QSB3.9-C80-30 QSB3.9-C80-31 QSB3.9-C80-31 QSB3.9-C80-31 QSB3.9-C80-31 QSB3.9-C80-31
Rated power kW 32 60 60 60 60 60 60
hp 42 80 80 80 80 80 80
Type Vertical, in-line, Water-cooled,
4-stroke, Direct injection		 Turbocharging,
Charge air cooling
Bore*Stroke*No.ofcylinders mm 90*100*4 108*115*4 108*115*4 108*115*4 108*115*4 108*115*4 108*115*4
Engine speed (nominal) RPM 2200 220 220 220 220 220 220
Engine speed (unloaded) RPM 1400 1500 1500 1500 1500 1500 1500
Engine oil capacity L 7 11 11 11 11 11 11
Coolant capacity L 15 25 25 25 25 25 25
Srorage battery current CCA 450 670 670 670 670 670 670
Fuel tank capacity L 52 120 120 120 120 120 120
Compressor
Compressed air vessel capacity L 27 43 43 43 43 43 43
Lubricant capacity L 18 30 30 30 30 30 30


Type DACY-5/10 DACY-5/12 DACY-5/13 DACY-7.5/7 DACY-7/9 DACY-9/7 DACY-8/10
Machine
Free air delivery m³/min 5.61 5.52 5.47 7.50 7.02 9.32 8.00
cfm 198 195 193 265 248 329 282
Normal working pressure bar(e) 10 12 13 7 9 7 10
psig 145 175 189 102 130 102 145
Dimensions
(without towbar)
(mm)		 L(mm) 3075 3075 3075 3075 3075 3220 3220
W(mm) 1900 1900 1900 1900 1900 2000 2000
H(mm) 2040 2040 2040 2040 2040 2355 2355
Weight kG 1350 1350 1350 1350 1350 1700 1700
Wheel qty 2 2 2 2 2 2 2
Size and No. of outlet valve G 3/4"*1
G 1-1/4"*1		 G 3/4"*1
G 1-1/4"*1		 G 3/4"*1
G 1-1/4"*1		 G 3/4"*1
G 1-1/4"*1		 G 3/4"*1
G 1-1/4"*1		 G 1"*1
G 1-1/2"*1		 G 1"*1
G 1-1/2"*1
Diesel engine
Manufacturer Cummins Cummins Cummins Cummins Cummins Cummins Cummins
Model QSB3.9-C80-31 QSB3.9-C80-31 QSB3.9-C80-31 QSB3.9-C80-31 QSB3.9-C80-31 QSB3.9-C80-31 QSB3.9-C80-31
Rated power kW 60 60 60 60 60 74 74
hp 80 80 80 80 80 100 100
Type Turbocharging, Charge air cooling
Bore*Stroke*No.ofcylinders mm 108*115*4 108*115*4 108*115*4 108*115*4 108*115*4 102*120*4 102*120*4
Engine speed (nominal) RPM 2200 2200 2200 2200 2200 2250 2400
Engine speed (unloaded) RPM 1400 1400 1400 1400 1400 1400 1400
Engine oil capacity L 11 11 11 11 11 11 11
Coolant capacity L 25 25 25 25 25 28 28
Srorage battery current CCA 670 670 670 670 670 670 670
Fuel tank capacity L 120 120 120 120 120 130 130
Compressor
Compressed air vessel capacity L 43 43 43 43 43 80 80
Lubricant capacity L 30 30 30 30 30 45 45


Type DACY-12/7 DACY-10/8 DACY-8.5/10 DACY-10/10 DACY-8.5/13 DACY-15/8 DACY-9/13
Machine
Free air delivery m³/min 12.00 10.35 10.28 10.28 8.50 15.00 9.00
cfm 424 366 363 363 300 530 318
Normal working pressure bar(e) 7 8 10 10 13 8 13
psig 102 116 145 145 189 116 189
Dimensions
(without towbar)
(mm)		 L(mm) 3220 3220 3220 3220 3220 3530 3530
W(mm) 2000 2000 2000 2000 2000 2090 2090
H(mm) 2355 2355 2355 2355 2355 2325 2325
Weight kG 1700 1700 1700 1700 1700 2050 2050
Wheel qty 2 2 2 2 2 2 2
Size and No. of outlet valve G 1"*1
G 1-1/2"*1		 G 1"*1
G 1-1/2"*1		 G 1"*1
G 1-1/2"*1		 G 1"*1
G 1-1/2"*1		 G 1"*1
G 1-1/2"*1		 G 1"*1
G 1-1/2"*1		 G 1"*1
G 1-1/2"*1
Diesel engine
Manufacturer Cummins Cummins Cummins Cummins Cummins Cummins Cummins
Model QSB3.9-C130-31 QSB3.9-C130-31 QSB3.9-C130-31 QSB3.9-C130-31 QSB3.9-C130-31 QSB5.9-C150-31 QSB5.9-C150-31
Rated power kW 96 96 96 96 96 113 113
hp 130 130 130 130 130 150 150
Type Turbocharging, Charge air cooling
Bore*Stroke*No.ofcylinders mm 102*120*4 102*120*4 102*120*4 102*120*4 102*120*4 102*120*4 102*120*4
Engine speed (nominal) RPM 2400 2400 2400 2400 2400 2200 2200
Engine speed (unloaded) RPM 1400 1400 1400 1400 1400 1400 1400
Engine oil capacity L 11 11 11 11 11 17.3 17.3
Coolant capacity L 33 33 33 33 33 33 33
Srorage battery current CCA 670 670 670 670 670 720 720
Fuel tank capacity L 130 130 130 130 130 130 130
Compressor
Compressed air vessel capacity L 80 80 80 80 80 110 110
Lubricant capacity L 45 45 45 45 45 55 55


Type DACY-12/8 DACY-13/8 DACY-11/10 DACY-12/10 DACY-10/13 DACY-9/14 DACY-9/15
Machine
Free air delivery m³/min 12.00 13.00 11.27 12.00 10.05 9.00 9.00
cfm 424 459 398 424 355 318 318
Normal working pressure bar(e) 8 8 10 10 13 14 15
psig 116 116 145 145 189 203 218
Dimensions
(without towbar)
(mm)		 L(mm) 3530 3530 3530 3530 3530 3530 3530
W(mm) 2090 2090 2090 2090 2090 2090 2090
H(mm) 2325 2325 2325 2325 2325 2325 2325
Weight kG 2050 2050 2050 2050 2050 2050 2050
Wheel qty 2 2 2 2 2 2 2
Size and No. of outlet valve G 1"*1
G 1-1/2"*1		 G 1"*1
G 1-1/2"*1		 G 1"*1
G 1-1/2"*1		 G 1"*1
G 1-1/2"*1		 G 1"*1
G 1-1/2"*1		 G 1"*1
G 1-1/2"*1		 G 1"*1
G 1-1/2"*1
Diesel engine
Manufacturer Cummins Cummins Cummins Cummins Cummins Cummins Cummins
Model QSB5.9-C150-31 QSB5.9-C150-31 QSB5.9-C150-31 QSB5.9-C150-31 QSB5.9-C150-31 QSB5.9-C150-31 QSB5.9-C150-31
Rated power kW 113 113 113 113 113 113 113
hp 150 150 150 150 150 150 150
Type Turbocharging, Charge air cooling
Bore*Stroke*No.ofcylinders mm 102*120*4 102*120*4 102*120*4 102*120*4 102*120*4 102*120*4 102*120*4
Engine speed (nominal) RPM 2200 2200 2200 2200 2000 2200 2200
Engine speed (unloaded) RPM 1400 1400 1400 1400 1400 1400 1400
Engine oil capacity L 17.3 17.3 17.3 17.3 17.3 17.3 17.3
Coolant capacity L 33 33 33 33 33 33 33
Srorage battery current CCA 720 720 720 720 720 720 720
Fuel tank capacity L 130 130 130 130 130 130 130
Compressor
Compressed air vessel capacity L 110 110 110 110 110 110 110
Lubricant capacity L 55 55 55 55 55 55 55


Type DACY-8/16 DACY-17/7 DACY-16/8 DACY-14/12 DACY-11/13 DACY-12/13 DACY-21/8
Machine
Free air delivery m³/min 8.24 17.77 16.17 14.00 11.67 12.00 21.52
cfm 291 627 571 494 412 424 760
Normal working pressure bar(e) 16 7 8 12 13 13 8
psig 232 102 116 175 189 189 116
Dimensions
(without towbar)
(mm)		 L(mm) 3530 3400 3400 3400 3400 3400 3400
W(mm) 2090 1770 1770 1770 1770 1770 1770
H(mm) 2325 2670 2670 2670 2670 2670 2670
Weight kG 2050 3600 3600 3600 3600 3600 4000
Wheel qty 2 4 4 4 4 4 4
Size and No. of outlet valve G 1"*1
G 1-1/2"*1		 G 1"*1
G 2-1/2"*1		 G 1"*1
G 2-1/2"*1		 G 1"*1
G 2-1/2"*1		 G 1"*1
G 2-1/2"*1		 G 1"*1
G 2-1/2"*1		 G 1"*1
G 2-1/2"*1
Diesel engine
Manufacturer Cummins Cummins Cummins Cummins Cummins Cummins Cummins
Model QSB5.9-C150-31 QSB5.9-C180-31 QSB5.9-C180-31 QSB5.9-C180-31 QSB5.9-C180-31 QSB5.9-C180-31 QSC8.3-C215-30
Rated power kW 113 132 132 132 132 132 132
hp 150 180 180 180 180 180 180
Type Turbocharging, Charge air cooling
Bore*Stroke*No.ofcylinders mm 102*120*4 102*120*4 102*120*4 102*120*4 102*120*4 102*120*4 114*135*6
Engine speed (nominal) RPM 2100 2200 2400 2100 2300 2350 2000
Engine speed (unloaded) RPM 1400 1400 1400 1400 1400 1400 1400
Engine oil capacity L 17.3 17.3 17.3 17.3 17.3 17.3 28.6
Coolant capacity L 33 33 33 33 33 33 50
Srorage battery current CCA 720 720 720 720 720 720 830
Fuel tank capacity L 130 330 300 300 300 300 360
Compressor
Compressed air vessel capacity L 110 189 189 189 189 189 189
Lubricant capacity L 55 80 80 80 80 80 90


Type DACY-20/10 DACY-18/10 DACY-15.5/13 DACY-15/16 DACY-10/20 DACY-17/14.5 DACY-15/18
Machine
Free air delivery m³/min 20.00 18.00 15.50 15.00 12.52 17.00 15.45
cfm 706 636 547 530 442 600 546
Normal working pressure bar(e) 10 10 13 16 20 15 18
psig 145 145 189 232 290 218 261
Dimensions
(without towbar)
(mm)		 L(mm) 3400 3400 3400 3400 3400 3400 3400
W(mm) 1770 1770 1770 1770 1770 1770 1770
H(mm) 2670 2670 2670 2670 2670 2670 2670
Weight kG 3600 4000 4000 4000 4000 4000 4000
Wheel qty 4 4 4 4 4 4 4
Size and No. of outlet valve G 1"*1
G 2-1/2"*1		 G 1"*1
G 2-1/2"*1		 G 1"*1
G 2-1/2"*1		 G 1"*1
G 2-1/2"*1		 G 1"*1
G 2-1/2"*1		 G 1"*1
G 2-1/2"*1		 G 1"*1
G 2-1/2"*1
Diesel engine
Manufacturer Cummins Cummins Cummins Cummins Cummins Cummins Cummins
Model QSC8.3-C215-30 QSC8.3-C215-30 QSC8.3-C215-30 QSC8.3-C215-30 QSC8.3-C215-30 QSC8.3-C260-30 QSC8.3-C260-30
Rated power kW 160 160 160 160 160 194 194
hp 215 215 215 215 215 260 260
Type Turbocharging, Charge air cooling
Bore*Stroke*No.ofcylinders mm 114*135*6 114*135*6 114*135*6 114*135*6 114*135*6 114*135*6 114*135*6
Engine speed (nominal) RPM 1800 2200 2200 2200 2100 1700 2050
Engine speed (unloaded) RPM 1400 1400 1400 1400 1400 1400 1400
Engine oil capacity L 28.6 28.6 28.6 28.6 28.6 28.6 28.6
Coolant capacity L 50 50 50 50 50 50 50
Srorage battery current CCA 830 830 830 830 830 830 830
Fuel tank capacity L 360 360 360 360 360 360 360
Compressor
Compressed air vessel capacity L 189 189 189 189 189 189 189
Lubricant capacity L 90 90 90 90 90 90 90


Type DACY-22.5/4 DACY-22.5/14G DACY-19/14.5 DACY-18.5/18 DACY-18.5/18G DACY-22/20 DACY-32/10
Machine
Free air delivery m³/min 22.50 22.50 19.00 18.50 18.50 22.00 32.00
cfm 794 794 671 653 653 777 1130
Normal working pressure bar(e) 14 14 15 18 18 20 10
psig 203 203 218 261 261 290 145
Dimensions
(without towbar)
(mm)		 L(mm) 3820 3820 3820 3820 3820 4000 4720
W(mm) 1980 1980 1980 1980 1980 2300 2160
H(mm) 2680 2680 2680 2680 2680 2750 3200
Weight kG 4400 4500 4400 4400 4500 5500 5500
Wheel qty 4 4 4 4 4 4 4
Size and No. of outlet valve G 1"*1
G 2"*1		 G 1"*1
G 2"*1		 G 1"*1
G 2"*1		 G 1"*1
G 2"*1		 G 1"*1
G 2"*1		 G 1"*1
G 2"*1		 G 1"*1
G 3 "*1
Diesel engine
Manufacturer Cummins Cummins Cummins Cummins Cummins Cummins Cummins
Model QSL8.9-C325-30 QSL8.9-C325-30 QSL8.9-C325-30 QSL8.9-C325-30 QSL8.9-C325-30 QSL8.9-C360-30 QSZ13-C400-30
Rated power kW 239 239 239 239 239 264 298
hp 325 325 325 325 325 359 405
Type Turbocharging, Charge air cooling
Bore*Stroke*No.ofcylinders mm 114*135*6 114*135*6 114*135*6 114*135*6 114*135*6 116.5*148*6 159*159*6
Engine speed (nominal) RPM 2200 2200 2200 2200 2200 2100 1900
Engine speed (unloaded) RPM 1350 1350 1350 1350 1350 1350 1500
Engine oil capacity L 28.6 28.6 28.6 28.6 28.6 28.6 46
Coolant capacity L 80 80 80 80 80 80 160
Srorage battery current CCA 830 830 830 830 830 830 930
Fuel tank capacity L 590 590 590 590 590 666 780
Compressor
Compressed air vessel capacity L 189 189 189 189 189 220 220
Lubricant capacity L 90 90 90 90 90 120 120


Type DACY-25.5/20 DACY-21/25 DACY-20/25 DACY-25/25 DACY-34/25 DACY-45/10 DACY-33/35 DACY-39/25
Machine
Free air delivery m³/min 25.50 21.00 20.73 25.85 34.00 47.77 33.48 39.00
cfm 900 742 732 93 1204 1687 1182 1377
Normal working pressure bar(e) 20 25 25 25 25 10 35 25
psig 290 363 363 363 363 145 508 363
Dimensions
(without towbar)
(mm)		 L(mm) 4250 4250 4250 4250 4250 4720 4510 4510
W(mm) 2220 2220 2220 2220 2220 2160 2160 2160
H(mm) 3170 3170 3170 3170 3170 3200 3170 3170
Weight kG 6500 6500 6500 6700 6900 6500 6900 6900
Wheel qty 4 4 4 4 4 4 4 4
Size and No. of outlet valve G 2-1/2"*1 G 2-1/2"*1 G 2-1/2"*1 G 2-1/2"*1 G 2-1/2"*1 G 1"*1
G 3 "*1		 G 2-1/2"*1 G 2-1/2"*1
Diesel engine
Manufacturer Cummins Cummins Cummins Cummins Cummins Cummins Cummins
Model QSZ13-C400-30 QSZ13-C400-30 QSZ13-C400-30 QSZ13-C500-30 KTA19-C600 QSZ13-C550-11 KTA19-P700 KAT19-700
Rated power kW 298 298 298 372 441 415 522 522
hp 405 405 405 506 600 565 710 710
Type Turbocharging, Charge air cooling
Bore*Stroke*No.ofcylinders mm 130*163*6 130*163*6 130*163*6 130*163*6 159*159*6 160*163*6 159*159*6 159*159*6
Engine speed (nominal) RPM 1900 1800 1800 1800 1800 1800 1800 1800
Engine speed (unloaded) RPM 1500 1500 1500 1500 1500 1500 1500 1500
Engine oil capacity L 46 46 46 46 46 46 46 46
Coolant capacity L 160 160 160 160 160 160 160 160
Srorage battery current CCA 930 930 930 930 930 930 930 930
Fuel tank capacity L 780 780 780 780 780 780 780 780
Compressor
Compressed air vessel capacity L 220 220 220 220 220 247 247 247
Lubricant capacity L 120 120 120 120 120 140 140 140


*)Free air delivery in accordance with ISO 1217 : 2009, Annex C: Absolute intake pressure 1 bar (a), cooling and air intake temperature 20°C.
Note: Skid-mounted type is available.

Rotary Screw Air Compressor

Download

Diesel Portable Screw Air Compressor

Download

Oil-free Air Compressor

Download

Compressed Air Treatment Equipment

Download

You may Like:

Free Consultation:

If you are interested in Hanthing air compressor, please contact us via
email: sales@exthin.com or send your inquiry in the form below.we will reply you within 24 hours.

*

*

*

Related Information:
Right Air Compressor
How to Choose the Right Air Compressor?
In our daily sales work, we have noticed that some of air compressor users dont really understand how to choose the right compressor specially if they are only responsible for purchase and finance departments...
Details
Read More >


Air Compressor


Compressed Air Treatment Equipment

Vacuum Pump


Mining Equipment


Service

Distributor


News


Contact Us

Like us on Facebook Follow us on YouTube Follow us on Twitter Follow us on LinkedIn

© 2006 Hanthing Energy Saving Technology (Shanghai) PLC.
