Direct Driven Screw Air Compressor

Working Pressure :
7.5-13[ bar ]
109-189[ psig ]
Free Air Delivery :
0.47-69.42[ m³/min ]
17-2451[ cfm ]
Working Power :
5.5-400[ kw ]
7.5-550[ hp ]

Chat with us, we are online!

Product Details
Technical Parameters
Catalogue Download

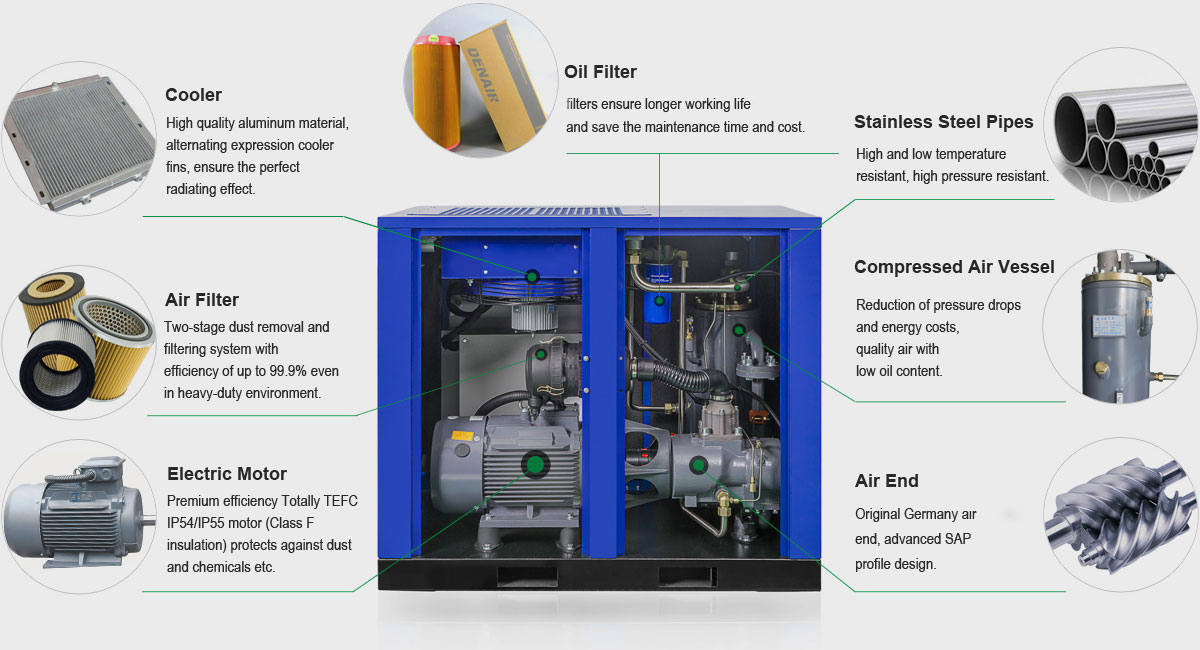

Direct Driven Screw Air Compressor Advantages:

State-of-the-art screw element, original Germany Hanthing air end, advanced SAP profile design, superior Sweden SKF element bearings.
Adopts world-renowned components, such as Schneider electronics from France, Danfoss pressure sensor from Denmark, etc. contribute to guarantee the compressor longer service life.
High-precision flexible coupling for direct driven air compressor, 1:1 transmission ratio, lower energy consumption, higher efficiency.
Intelligent controller and multi-language LCD keep the outstanding safety performance.
Stainless steel oil pipe and air pipe, high temperature resistant (400℃=752℉) and low temperature resistant(-270℃=518℉), high pressure resistant.Ultra-long life(80 years), completely leak free and maintenance free Conform to CE, ISO9001 and energy saving certification, etc.
Conform to CE, ISO9001 and energy saving certification, etc.

Model	Maxinmum working pressure		Capacity(FAD)*				Installed motor power		Driving mode& Cooling method	Dimensions(mm)			Weight	Noise level**	Air outlet pipe diameter
	Maxinmum working pressure		50 HZ		60 HZ		Installed motor power			Dimensions(mm)			Weight	Noise level**
	bar(e)	psig	m³/min	cfm	m³/min	cfm	kw	hp		L	W	H	kg	dB(A)
DA-5	7.5	109	0.85	30	0.85	30	5.5	7.5	Belt Driven Air Cooling	900	660	940	180	62	G3/4"
	8.5	123	0.84	30	0.84	30	5.5	7.5		900	660	940	180
	10.5	152	0.59	21	0.59	21	5.5	7.5		900	660	940	180
	13	189	0.47	17	0.47	17	5.5	7.5		900	660	940	180
DA-7	7.5	109	1.04	37	1.02	36	7.5	10		900	660	940	180	62	G3/4"
	8.5	123	0.96	34	0.96	34	7.5	10		900	660	940	180
	10.5	152	0.88	31	0.88	31	7.5	10		900	660	940	180
	13	189	0.72	25	0.72	25	7.5	10		900	660	940	180
DA-11	7.5	109	1.73	61	1.66	59	11	15		900	660	940	180	62	G3/4"
	8.5	123	1.73	61	1.58	56	11	15		900	660	940	180
	10.5	152	1.34	47	1.34	47	11	15		900	660	940	180
	13	189	1.10	39	1.10	39	11	15		900	660	940	180
DA-15	7.5	109	2.48	88	2.34	83	15	20	Direct Driven Air Cooling	1250	870	1040	300	64	G1-1/4"
	8.5	123	2.47	87	2.34	83	15	20		1250	870	1040	300
	10.5	152	1.99	70	2.32	82	15	20		1250	870	1040	300
	13	189	1.98	70	2.30	81	15	20		1250	870	1040	300
DA-18	7.5	109	2.95	104	3.56	126	18.5	25		1250	870	1040	375	64	G1-1/4"
	8.5	123	2.94	104	3.54	125	18.5	25		1250	870	1040	375
	10.5	152	2.90	103	2.34	83	18.5	25		1250	870	1040	375
	13	189	1.98	70	2.33	82	18.5	25		1250	870	1040	375
DA-22	7.5	109	3.63	128	3.56	126	22	30		1250	870	1040	420	66	G1-1/4"
	8.5	123	3.61	127	3.54	125	22	30		1250	870	1040	420
	10.5	152	2.90	103	3.52	124	22	30		1250	870	1040	420
	13	189	2.88	102	2.34	83	22	30		1250	870	1040	420
DA-30	7.5	109	5.15	182	4.33	153	30	40		1650	1050	1400	645	66	G1-1/4"
	8.5	123	5.14	181	4.31	152	30	40		1650	1050	1400	645
	10.5	152	5.11	180	3.57	126	30	40		1650	1050	1400	645
	13	189	3.37	119	3.54	125	30	40		1650	1050	1400	645
DA-37	7.5	109	6.38	225	7.73	273	37	50		1650	1050	1400	680	66	G1-1/4"
	8.5	123	6.34	224	7.70	272	37	50		1650	1050	1400	680
	10.5	152	6.32	223	6.27	221	37	50		1650	1050	1400	680
	13	189	6.27	221	6.16	217	37	50		1650	1050	1400	680
DA-45	7.5	109	7.51	265	7.73	273	45	60		1650	1050	1400	840	69	G1-1/2"
	8.5	123	7.46	263	7.7	272	45	60		1650	1050	1400	840
	10.5	152	6.32	223	6.91	244	45	60		1650	1050	1400	840
	13	189	5.10	180	6.16	217	45	60		1650	1050	1400	840
DA-55	7.5	109	9.61	339	8.94	316	55	75		1800	1400	1600	1250	69	G2"
	8.5	123	9.53	336	8.89	314	55	75		1800	1400	1600	1250
	10.5	152	9.24	326	7.65	270	55	75		1800	1400	1600	1250
	13	189	7.21	255	7.59	268	55	75		1800	1400	1600	1250
DA-75	7.5	109	13.91	491	14.61	516	75	100		1800	1400	1600	1350	69	G2"
	8.5	123	12.18	430	14.56	514	75	100		1800	1400	1600	1350
	10.5	152	9.33	330	11.37	402	75	100		1800	1400	1600	1350
	13	189	9.06	320	11.21	396	75	100		1800	1400	1600	1350
DA-90	7.5	109	16.43	580	16.58	586	90	120		2950	1800	2300	2100	82±3	DN50
	8.5	123	16.39	579	16.48	582	90	120		2950	1800	2300	2100
	10.5	152	13.91	491	14.48	511	90	120		2950	1800	2300	2100
	13	189	11.98	423	11.21	396	90	120		2950	1800	2300	2100
DA-110	7.5	109	19.69	695	19.67	695	110	150		2950	1800	2300	2500	85±3	DN80
	8.5	123	19.62	693	19.62	693	110	150		2950	1800	2300	2500
	10.5	152	16.28	575	16.48	582	110	150		2950	1800	2300	2500
	13	189	13.80	487	14.39	508	110	150		2950	1800	2300	2500
DA-132	7.5	109	22.36	790	23.97	846	132	175		2950	1800	2300	2600	85±3	DN80
	8.5	123	22.24	785	23.83	840	132	175		2950	1800	2300	2600
	10.5	152	19.46	687	19.42	686	132	175		2950	1800	2300	2600
	13	189	16.15	570	16.33	576	132	175		2950	1800	2300	2600
DA-160	7.5	109	26.34	930	27.46	970	160	215		2950	1800	2300	3150	85±3	DN80
	8.5	123	26.29	928	27.32	965	160	215		2950	1800	2300	3150
	10.5	152	21.96	775	23.58	832	160	215		2950	1800	2300	3150
	13	189	19.21	678	19.37	684	160	215		2950	1800	2300	3150
DA-185(W)	7.5	109	28.27	998	29.87	1055	185	250	Direct Driven Air Cooling Or Water Cooling	2950	1800	2300	3550	85±3	DN80
	8.5	123	28.22	997	29.77	1051	185	250		2950	1800	2300	3550
	10.5	152	24.57	867	27.02	954	185	250		2950	1800	2300	3550
	13	189	21.61	763	23.30	823	185	250		2950	1800	2300	3550
DA-200(W)	7.5	109	31.20	1102	29.87	1055	200	270		3700	2300	2450	4150	88±3	DN80
	8.5	123	31.14	1099	29.77	1051	200	270		3700	2300	2450	4150
	10.5	152	27.87	984	29.13	1029	200	270		3700	2300	2450	4150
	13	189	24.46	864	26.46	934	200	270		3700	2300	2450	4150
DA-220(W)	7.5	109	35.42	1251	36.97	1305	220	300		3700	2300	2450	4300	88±3	DN100
	8.5	123	35.37	1249	32.61	1151	220	300		3700	2300	2450	4300
	10.5	152	31.02	1095	32.53	1149	220	300		3700	2300	2450	4300
	13	189	27.87	984	26.46	934	220	300		3700	2300	2450	4300
DA-250(W)	7.5	109	42.37	1496	42.17	1489	250	350		3700	2300	2450	4400	88±3	DN100
	8.5	123	42.31	1494	42.17	1489	250	350		3700	2300	2450	4400
	10.5	152	35.26	1245	32.86	1160	250	350		3700	2300	2450	4400
	13	189	30.87	1090	32.74	1156	250	350		3700	2300	2450	4400
DA-280(W)	7.5	109	45.59	1610	46.26	1633	280	375		3700	2300	2450	4600	88±3	DN125
	8.5	123	45.53	1608	44.77	1581	280	375		3700	2300	2450	4600
	10.5	152	40.11	1416	40.25	1421	280	375		3700	2300	2450	4600
	13	189	35.12	1240	36.05	1273	280	375		3700	2300	2450	4600
DA-315(W)	7.5	109	52.02	1837	49.91	1762	315	425		3700	2300	2450	6700	90±3	DN125
	8.5	123	51.50	1818	47.60	1681	315	425		3700	2300	2450	6700
	10.5	152	45.80	1617	44.64	1576	315	425		3700	2300	2450	6700
	13	189	42.00	1483	40.08	1415	315	425		3700	2300	2450	6700
DA-355(W)	7.5	109	62.01	2189	52.53	1855	355	475		3700	2300	2450	7200	90±3	DN125
	8.5	123	61.80	2182	52.53	1855	355	475		3700	2300	2450	7200
	10.5	152	51.5	1818	47.12	1664	355	475		3700	2300	2450	7200
	13	189	46.65	1612	43.64	1541	355	475		3700	2300	2450	7200
DA-400(W)	7.5	109	67.47	2382	69.42	2451	375	515		3700	2300	2450	8500	90±3	DN125
	8.5	123	66.95	2364	69.01	2437	375	515		3700	2300	2450	8500
	10.5	152	50.50	1783	47.12	1664	375	515		3700	2300	2450	8500
	13	189	45.05	1591	43.64	1541	375	515		3700	2300	2450	8500

*) FAD in accordance with ISO 1217 : 2009, Annex C: Absolute intake pressure 1 bar (a), cooling and air intake temperature 20°C
**) Noise level as per ISO 2151 and the basic standard ISO 9614-2, operation at maximum operating pressure and maximum speed; tolerance: ± 3 dB(A)
***) EEI 2- Energy Effiency Index 2, which refers to normal energy saving series
