Pumping Speed :
4-65[ m3/h ]Extreme Pressure :
0.02[ mbar ]Motor Power :
0.4-2.2[ kW ]

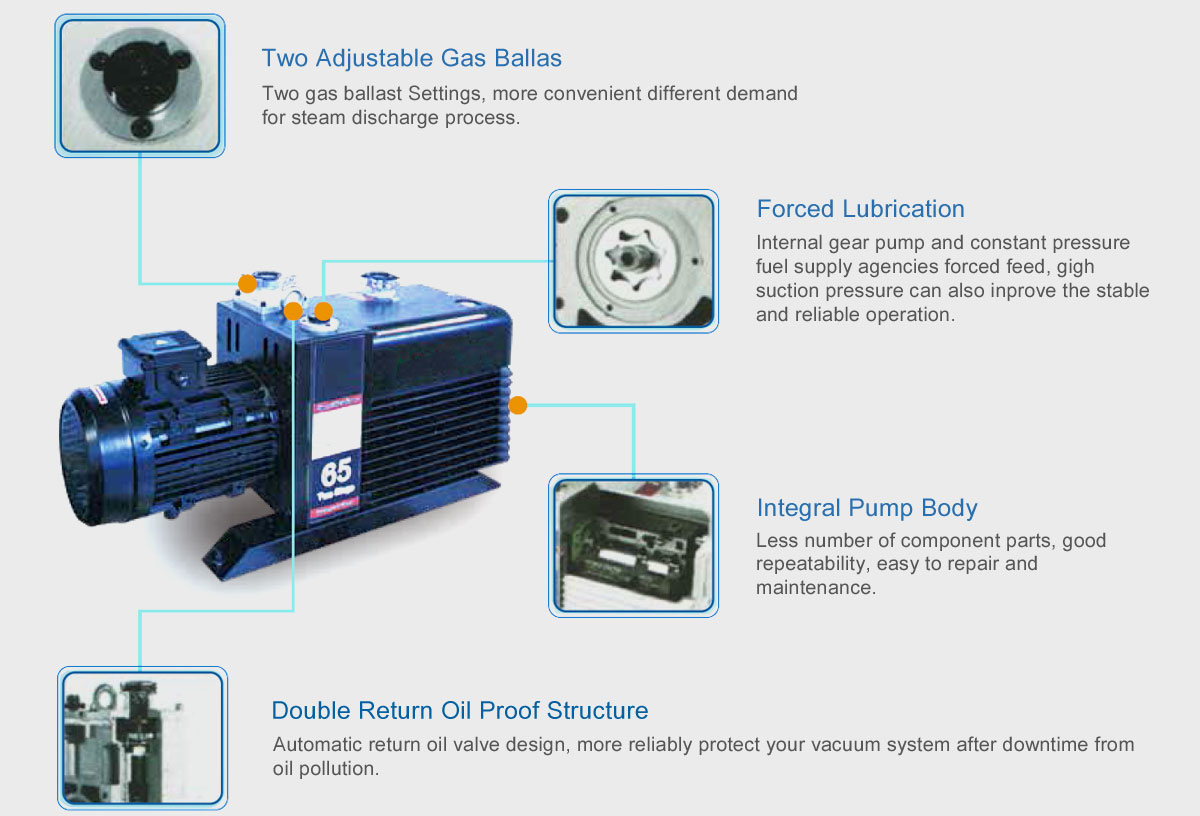

two Adjustable Gas Ballas
forced Lubrication
Integral pump body
double Return Oil Proof Structure
| Model | DPZ-4 | DPZ-8 | DPZ-16 | DPZ-24 | DPZ-30 | DPZ-48 | DPZ-65 | |
|---|---|---|---|---|---|---|---|---|
| Pumping Speed m3/h(L/s) | 50HZ | 4（1.1） | 8（2.2） | 16（4.4） | 24（6.6） | 30（8.3） | 48（13.3） | 65（18） |
| 60HZ | 4.8（1.3） | 9.6（2.6） | 9.2（5.2） | 28.8（7.9） | 36（9.9） | 57.6（16） | 78（21.6） | |
| Extreme Separate Pressure Intensity--Close (Pa) | 5*10-2 | 5*10-2 | 4*10-2 | 4*10-2 | 4*10-2 | 4*10-2 | 4*10-2 | |
| Extreme Total Pressure Intensity--Close (Pa) | 5*10-1 | 5*10-1 | 4*10-1 | 4*10-1 | 4*10-1 | 4*10-1 | 4*10-1 | |
| Extreme Separate Pressure Intensity--Open (Pa) | 3 | 3 | 8*10-1 | 8*10-1 | 8*10-1 | 8*10-1 | 8*10-1 | |
| Power | Single/Three Phase | Single/Three Phase | Single/Three Phase | Single/Three Phase | Single/Three Phase | Three Phase | Three Phase | |
| Motor Power (kW) | 0.4/0.37 | 0.4/0.37 | 0.75/0.55 | 1.1/0.75 | 1.1 | 1.5 | 2.2 | |
| Inlet/Outlet Connection(mm) | KF16/25 | KF16/25 | KF25 | KF25/40 | KF25/40 | KF40 | KF40 | |
| Lubricant Capacity(L) | 0.6-1.0 | 0.6-1.0 | 0.9-1.5 | 1.3-2.0 | 1.3-2.0 | 3.3-4.5 | 3.3-4.5 | |
| motor speed (rpm) | 50HZ | 1440 | ||||||
| 60HZ | 1720 | |||||||
| Ambient Temperature(℃) | 5-40 | |||||||
| Noise (dB) | ≤56 | ≤56 | ≤58 | ≤58 | ≤58 | ≤62 | ≤62 | |
| Weight (Kg) | 19 | 21 | 30 | 35 | 43 | 62 | 65 | |
*) Specifications are subject to change without prior notice
