当前位置 : 主页 > 产品中心 > 真空泵 >

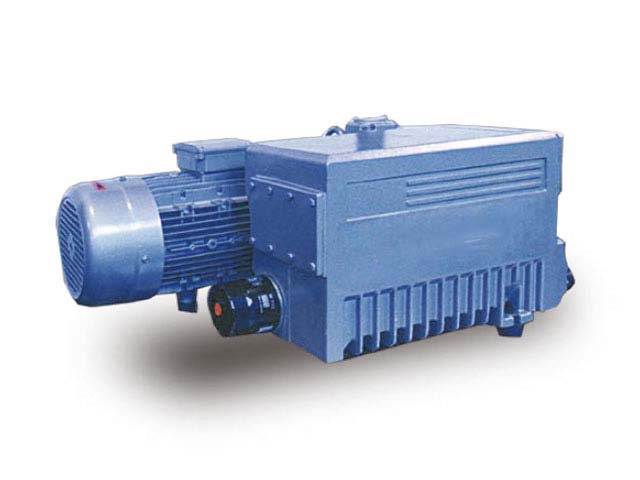

DPX单级旋片真空泵

DPX单级旋片真空泵

功  率:0.37~15KW

抽气速率:10~630m³/h

压  力:0.1~2mbar

参  数:16~660KG

参  数:62~75DB(A)

立即咨询 免费电话

订购热线: 400 777 0802

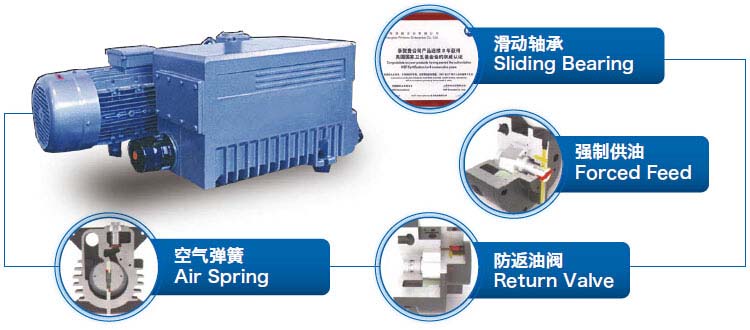

DPX系列单级旋片泵性能优势:
●材质优质、操作维护简易/The material quality, simple operation and maintenance
●工艺先进、耐久高、运行费用低/Advanced technology, high durability, low operating cost
●节能环保,结构紧凑轻便/Energy conservation and environmental protection, the structure iscompact and light
●排气洁净无油烟/Clean exhaust lampblack
●采用无弹簧旋片,实现低噪音、低震动/No spring, low noise, low vibration
●采用内置油逆止阀,实现泵无反油现象/Pump is realized by using the built-in non-return valve oil, without the phenomenon of oil
●采用内置油泵强制供油,实现泵在大气压以下长时间连续稳定运行/The pump is realized by using the built-in pump forced feed, continuous and stable operation under atmospheric pressure for a long time
单级旋片泵性能优势
型 号
Model

DPX-10

DPX-16

DPX-21

DPX-40

DPX-63

DPX-100

DPX-160

DPX-200

DPX-250

DPX-300

DPX-630
抽速 m3/h 10 16 20 40 63 100 160 200 250 300 630
极限压力(mbar) 2 2 1 0.5 0.5 0 0.5 0.5 0.5 0.5 0.1
电机功率(KW) 0.37 0.55 0.75 1.1 1.5 2.2/3.0 4 4.0/5.5 5 5.5/7.5 15
转速 Speed 2800 2800 2800 1450 1450 1450 1450 1450 1450 1450 825
最大水蒸气抽除量
Kg/h
* * 0.4 0.7 1 1.5 2.5 4 4 4.5 26
噪音 Noise
(dB)
62 63 64 64 65 67 72 74 7 75 75
吸气口径(Inch) G1/2″ G1/2″ G1/2″ G1 1/4″ G1 1/4″ G1 1/4″ G2″ G2″ G2″ G2″ DN100
重量 Weight
(kg)
16 16 19 43 49 69 142 145 190 212 660
外形尺寸
(L*W*H)mm
308*215
*207
308*215
*207
421*232
*218
635*286
*266
605*308
*280
710*405
*290
761*495
*411
795*495
*411
965*585
*411
1010*585
*411
1488*888
*752

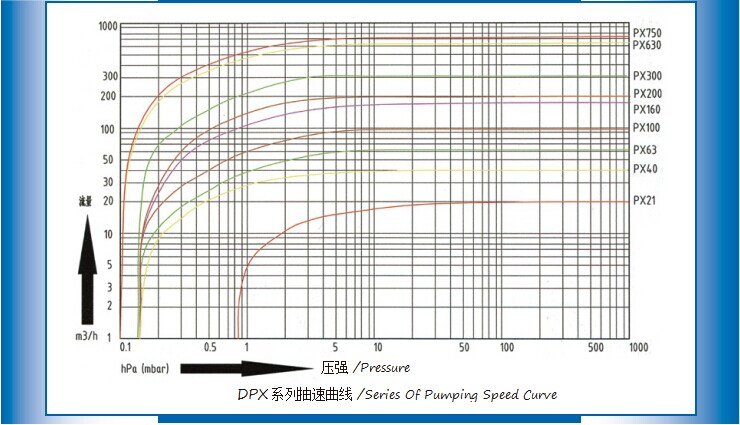

单级旋片真空泵性能曲线:

单级旋片泵性能曲线
说明:

  汉森对产品不断改进,保有设计变更权,如有更改,恕不另行通知

DPX系列单级旋片泵应用领域:
●真空结晶,蒸馏,注入,预冷/Crystallization, vacuum distillation, injection, precooling
●真空过滤,罐装,压缩/Vacuum filter, canned, compression
●真空镀膜及工业炉作为前级泵及预抽泵/Vacuum coating and the industrial furnace as the backing pump and drainage pump
●粉体物料或液体的真空输送,收集/Powder material or liquid vacuum conveying, collection
●真空包装及食品加工工艺/Vacuum packaging and food processing technology
●热成型(吸塑,压空,发泡成型)/Thermoforming (blister, pressure air and foam molding)
●真空除气,脱泡,浸渗,浓缩,干燥/The vacuum degassing, deaeration, impregnation, concentration, drying
●真空吸附,夹具,吊具,吸盘/Vacuum adsorption, fixture, spreader, chuck/div>
●真空压合,定型,贴膜/Vacuum pressure, finalize the design, the paster
●工厂,医院,实验室的中央真空系统/Factory, hospital, laboratory, the central vacuum system
●和其他类型真空泵组合成特殊用途的真空机组/And other types of vacuum pump, vacuum unit of the special purposes
